Rugged easy-to-use thermal imager for electrical and industrial inspection

A thermal imager of this size is ideal for first line troubleshooting. Use it to quickly scan electrical equipment, pumps, motors, building systems, HVAC, and process control equipment for hot spots and cold spots that can indicate early signs of trouble. Now you can get a professional grade, thermal imager in a pocket size.

Watch the video, discover how Fluke’s PTi120 can help you

Locate problems easily
The 3.5″ LCD touchscreen IR Fusion automatically captures a digital visible light image simultaneously with an infrared image and lets you view the result with varying degrees of blending—from full infrared to full visible light. Simply slide your finger across the screen to adjust the setting.

Save time and ensure images are stored
With Fluke Connect Asset Tagging you eliminate the tedium of sorting and organizing your infrared images. By simply scanning your asset’s QR code or barcode, your infrared image and all of your date and time stamped information will be stored to your predefined folders. Send via WiFi or automatically upload once you connect to the network or computer via USB. It’s about time. Now you can more efficiently save, find and report on issues before they become problems.

Survive harsh environments and accidental drops
Small enough to carry every day without worry. Always at hand. Stands up to dirt and water. Can survive a 1-meter drop. Now enhanced infrared inspections are right in your pocket for quick temperature scans of electrical equipment, machinery and other assets.

Now you can more efficiently save, find and report on issues before they become problems.

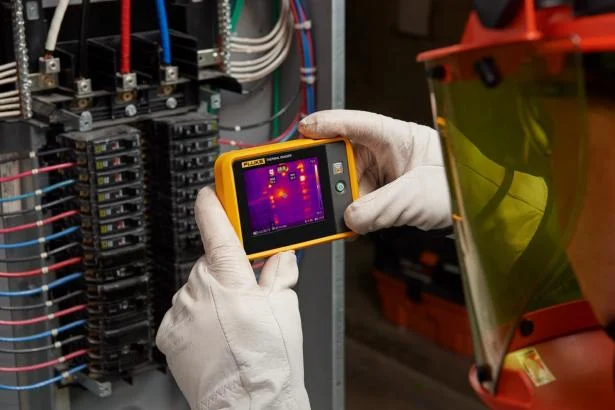

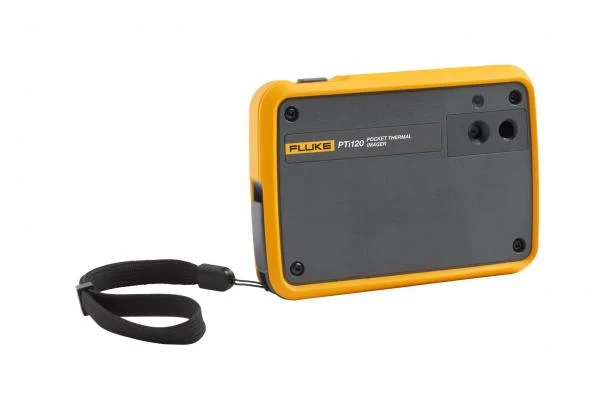

Designed to perform quick inspections of various assets including fuses, pumps and motors, and electrical panels, the compact Fluke PTi120 Pocket Thermal Imaging Camera is a fully radiometric infrared camera with an IR resolution of 120 x 90 (10 800 pixels) and a temperature range of -20°C to +400°C. Each pixel within captured IR images contains specific temperature information pertaining to that area.

As the Fluke PTi120 Pocket Thermal Imaging Camera is equipped with a Fluke Connect Asset Tagging feature, captured IR images and their time and date stamped data is automatically saved to a predefined folder. The user needs only scan a barcode or QR code to ensure the captured media and information is saved to the relevant folder. This information can be transferred to a PC, network and/or relevant persons via a Wi-Fi connection. Alternatively, this data will be automatically uploaded to a PC or network when connected via a USB interface.

Images can be viewed via the Fluke PTi120 Pocket Thermal Imaging Camera’s 3.5-inch, LCD, touchscreen display. Via this display the user can engage the IR-Fusion™ function which will blend thermal images with visible light images to varying degrees; the user can alter the degree to which this blending occurs by sliding his/her finger across the screen. As a result, the user is provided with a picture containing all the relevant thermal data with the detail of a visible photo. This adds to the ease, and efficiency of identifying and locating failing components allowing the user to affect the necessary repairs before significant damage is sustained; subsequently this reduces the overall downtime of the equipment, plant and/or system.

Also adding to the efficiency and ease of troubleshooting is the Fluke PTi120 Pocket Thermal Imaging Camera’s ability to display images in a variety of colour palettes. The user can select from six colour palettes in order to view the details most relevant to his/her application.

The compact size of the Fluke PTi120 Pocket Thermal Imaging Camera ensures that it is always easily accessible, as it can be transported within the user’s pocket. Furthermore, its rugged design means that it is protected against dust and water ingress and is able to survive a drop of up to 1m. The Fluke PTi120 Pocket Thermal Imaging Camera has an IP54 enclosure rating.

The resilient, reliable and practical Fluke PTi120 Pocket Thermal Imaging Camera is an effective troubleshooting and predictive maintenance tool; it is ideal for performing frontline scans of a variety of assets.

Fluke PTi120 Pocket Thermal Imaging Camera Key Features

• Designed to perform quick inspections of various assets
• Check fuses, pumps and motors, and electrical panels
• Fully radiometric infrared camera: each pixel contains area-specific temperature information
• IR resolution: 120 x 90 (10 800 pixels)
• Temperature range: -20°C to +400°C
• Frame rate: 9 Hz
• Fluke Connect Asset Tagging: scan an asset’s QR or barcode to automatically save IR images and date and time stamped data to a pre-defined folder
• Fluke Connect Asset Tagging improves the ease and efficiency of organising and storing images and data
• Send saved data to a PC, network or relevant persons via Wi-Fi
• Automatically upload data to a PC or network via a USB connection
• 3.5”, LCD, touchscreen display
• IR-Fusion™ function blends thermal images with visible-light images to varying degrees
• Alter the degree of IR-Fusion™ blending by sliding a finger across the screen
• Identify and locate failing components before significant damage is sustained
• Affect repairs quickly thereby reducing the overall downtime of the equipment, plant and/or system
• Six colour palettes
• Compact and rugged design
• Can be transported in the user’s pocket
• IP54 enclosure rating
• Resistant to dust and water ingress
• Drop tested to 1m
• Resilient, reliable and practical
• An effective troubleshooting and preventative maintenance tool
• Ideal for performing frontline scans of a variety of assets

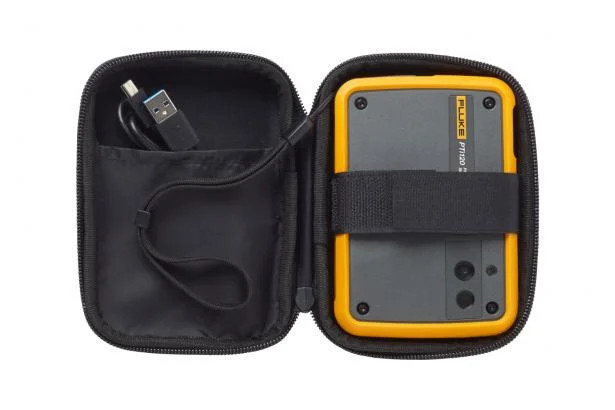

What’s Included?

• Fluke PTi120 Pocket Thermal Imaging Camera
• USB Cable (for charging and data transfer)
• Soft Carrying Case
• Adjustable Lanyard

Fluke’s Fluke Connect Desktop Software and the user manual are available for free download.
