The FLIR C3-X makes it easier than ever to inspect for hidden problems, document repairs, and share evidence with customers. Featuring a 128 × 96 pixel thermal sensor, MSX® (Multi-Spectral Dynamic Imaging), a 5-megapixel visual camera, and LED flashlight, the C3-X is an affordable inspection tool for electrical/mechanical, building, and maintenance applications. Directly upload and store images to the FLIR Ignite™ cloud, where you can organize and back up files. Instantly share images with customers or create professional reports from a mobile device or computer.
Reduce diagnostic time, simplify reporting
- Identify and troubleshootQuickly find hidden faults and reduce diagnostic time with MSX and 128 × 96 true thermal imaging
- Document and shareDirectly upload images using FLIR Ignite cloud connectivity, then create professional reports and email them to customers
- Rugged, reliable, compactTake the pocket-portable C3-X with you to every job – it’s IP54 rated for protection against water and dust and designed to withstand a 2 m drop
Professional Reports
Software that Helps Your Customer and Your Business
The right image analysis and reporting software can greatly improve your business by making it easier for you and your customers to understand the problem and feel confident that you fixed it.
The advanced analysis and decision-making support offered in FLIR Thermal Studio Pro includes a rich set of measurement tools, batch processing, the ability to pre-plan inspection routes, and customized report templates.
Become a Thermal Studio Expert
Learn to edit images, analyze them, and produce custom reports using FLIR Thermal Studio Suite software with online training from the Infrared Training Center. This virtual class covers everything you need to know, including:
- How to adjust image parameters and optimize thermal contrast
- How to create batch functions for image processing
- How to design a new report template
Never Worry About Your Camera Performance Again
Keep your camera going strong with FLIR CARE and FLIR PROTECT. FLIR CARE provides world-class calibration with performance verification and traceable calibration adjustment services that ensure your thermal data is always accurate. FLIR PROTECT extended warranty and service packages provide a full three years of coverage beyond the respective camera’s factory warranty. FLIR PROTECT customers can also receive a bundled calibration service, discounts on additional services, and options for fast-delivered loaner cameras.

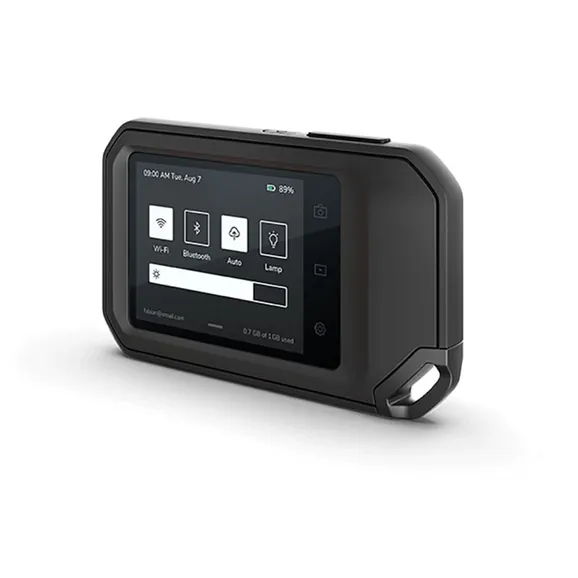

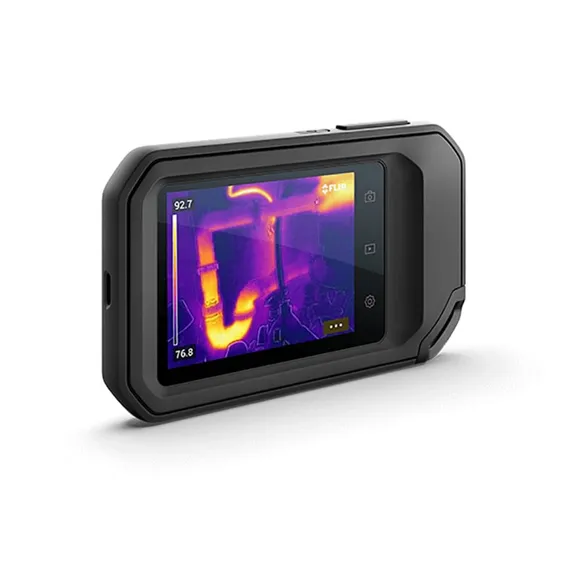

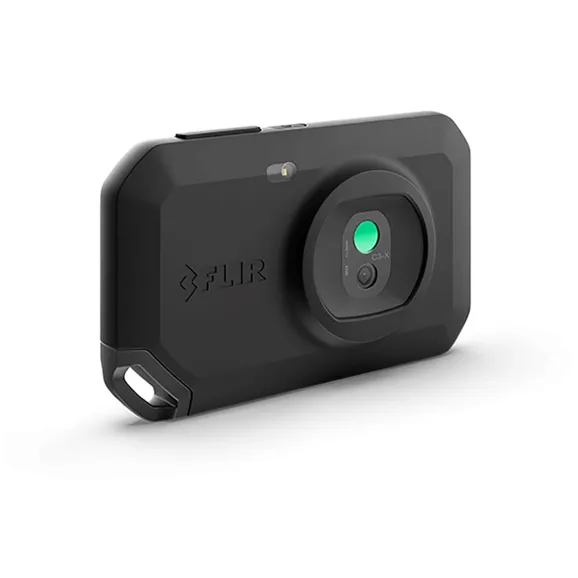

Small and simple-to-use, the FLIR C3-X Compact Thermal Imaging Camera is an infrared- and visible-light-imaging camera suitable for inspecting buildings, HVAC/R, and electrical systems. This professional troubleshooting tool features an integrated LED torch, 3.5” touchscreen display, and optional Wi-Fi connectivity.
There are two versions of the FLIR C3-X Compact Thermal Imaging Camera available: one with Wi-Fi and one without Wi-Fi. Please see the table below for further information.
| SKU | Wi-Fi |
| 90501-0101 | No |
| 90501-0201 | Yes |
Thermal & Optical Imaging
The FLIR C3-X Compact Thermal Imaging Camera has an IR resolution of 128 x 96px and a 70mK thermal sensitivity. It can measure temperatures between -20°C and +300°C to an accuracy of ±3°C/3%. It is also equipped with a 5MP digital camera.
The FLIR C3-X Compact Thermal Imaging Camera offers four imaging modes:
- Visual
- Infrared
- Picture-in-Picture
- MSX®: overlays digital details onto the thermal image to improve picture clarity; this makes it easier and quicker for the thermographer to identify the source of faults
In addition to this, the FLIR C3-X Compact Thermal Imaging Camera features four selectable thermal colour palettes: Iron, Grey, Rainbow and Rainbow HC.
Images can be saved to the FLIR C3-X Compact Thermal Imaging Camera’s onboard memory which has the capacity to store 5000 images. Saved images may be downloaded to a PC via a USB interface for analysis and organisation into reports using the thermographer’s preferred software, such as FLIR’s Thermal Studio Software.
Ergonomic & Easy-to-Use
This compact camera fits easily inside a pocket or crowded tool bag. The FLIR C3-X Compact Thermal Imaging Camera is rugged: it has an ingress protection rating of IP54 and has been drop tested from 2m.
Moreover, the FLIR C3-X Compact Thermal Imaging Camera’s simple user-interface and 3.5” touchscreen display ensure that it is easy to operate.
OPTIONAL Wi-Fi
The FLIR C3-X Compact Thermal Imaging Camera with Wi-Fi can connect to the FLIR Ignite™ Cloud to which images may be uploaded for storage, organisation and back-up. Thermographers can also add written annotations to images to highlight and explain detected issues. Images may be shared with clients via a password-protected link sent in an email.
The FLIR C3-X Compact Thermal Imaging Camera is a pocket-sized, professional inspection tool ideal for locating hot fuses, air leaks and plumbing issues.
FLIR C3-X Compact Thermal Imaging Camera Key Features
- Pocket-sized infrared-imaging and visible-light camera
- Inspect buildings, HVAC/R, and electrical systems
- Professional troubleshooting tool
- Integrated LED torch
- 3.5” touchscreen display
- OPTIONAL Wi-Fi
- Two models available: one with Wi-Fi and one without Wi-Fi
- IR sensor resolution: 128 x 96px
- Thermal sensitivity: 70mK
- Temperature range: -20°C to +300°C
- Accuracy: ±3°C/3%
- Built-in 5MP digital camera
- MSX® imaging mode: overlays digital details onto thermal images
- Visual imaging mode
- Infrared imaging mode
- Picture-in-Picture imaging mode
- Four selectable thermal colour palettes: Iron, Grey, Rainbow and Rainbow HC
- Onboard memory: capacity 5000 images
- USB interface
- Small: easily fits in a pocket or crowded tool bag
- Drop-tested from 2m
- IP54
- Simple user-interface
- OPTIONAL Wi-Fi provides FLIR Ignite™ Cloud Connectivity
- Save images to the FLIR Ignite™ Cloud
- Add annotations to images
- Send clients a password-protected link via email
- A small, simple-to-use infrared imager
- Ideal for finding hot fuses, air leaks and plumbing issues
What’s Included?
- FLIR C3-X Compact Thermal Imaging Camera
- Wrist Strap
- Lanyard
- USB Cable
- Pouch
- Printed Documentation
Specifications
- IR Resolution
- 128 × 96 pixels
- Thermal Sensitivity/NETD
- <70 mK
- Accuracy
- 0 to 100°C (32 to 212°F): ±3°C (±5.5°F); 100 to 300°C (212 to 572°F): ±3% [ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F)]
- Field of view (FOV)
- 53.6°
- Digital Camera
- 5 MP resolution
- Image Modes
- Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
- Storage Media
- Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
Imaging & Optical
- Auto orientation
- Yes
- Camera software update
- Automatic over Wi-Fi, USB via computer
- Color
- Black
- Color Palettes
- Iron, Gray, Rainbow, Rainbow HC
- Detector Pitch
- 12 µm
- Detector Type
- Focal plane array, uncooled microbolometer
- Digital Camera
- 5 MP resolution
- Digital Camera FOV
- 71.5° × 56° (84° diagonal)
- Digital Zoom
- No
- Display resolution
- 640 × 480 pixels
- Field of view (FOV)
- 53.6°
- f-number
- 1.1
- Focus
- Focus free
- Gallery
- Thumbnails and custom folder structure
- Image Frequency
- 8.7 Hz
- Image Modes
- Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
- IR Resolution
- 128 × 96 pixels
- Minimum Focus Distance
- Thermal: 0.1 m (0.32 ft), MSX: 0.3 m (0.98 ft)
- Spatial resolution (IFOV)
- 7.9 mrad/pixel
- Spectral Range
- 8 to 14 µm
- Thermal Sensitivity/NETD
- <70 mK
- Video Lamp
- Yes
Measurement & Analysis
- Accuracy
- 0 to 100°C (32 to 212°F): ±3°C (±5.5°F); 100 to 300°C (212 to 572°F): ±3% [ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F)]
- Camera size (L x W x H)
- 138 × 84 × 24 mm (5.4 × 3.3 × 0.94 in)
- Measurements correction
- Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation
- Object Temperature Range
- -20 to 300°C (-4 to 572°F)
- Set-up Commands
- Local adaptation of units, language, date and time formats, Screen brightness (high, medium, low)
User Interface
- Display Technology
- IPS
- Languages
- Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish
- Text
- Soft keyboard on touchscreen
- Touchscreen
- Capacitive touch
Power
- Battery capacity
- 1800 mAh
- Battery charge life
- >500 cycles
- Battery operating time
- 4 hours
- Battery type
- Rechargeable built-in Lithium ion battery
- Battery voltage
- 3.7 V
- Battery weight
- 40 g (1.4 oz)
- Charging system
- USB-C (1 A)
- Charging Temperature
- 35°C (95°F)
- Charging Time
- 2 hours
- External Power Operation
- 5 V, USB-C
- Power Management
- Adjustable stand-by and automatic shut-down
Environmental & Certifications
- Drop test
- 2 m (6.56 ft)
- EMC
- EN 301 487-1; EN 301 489-17; FCC 47 CFR Part 15 Class B
- Encapsulation
- Camera housing and lens: IP54 rated (IEC 60529)
- Humidity (Operating and Storage)
- IEC 60068-2-30/24 h 95% relative humidity 25 to 40°C (77 to 104°F) / 2 cycles
- Magnetic fields
- EN 61000-4-8 level 5
- Operating Temperature Range
- -10 to 50°C (14 to 122°F)
- Radio Spectrum
- ETSI EN 300 328; EN 301 489; FCC Title 47 CFR Part 15; RSS-247 Issue 2
- Relative Humidity
- 95% relative humidity 25 to 40°C (77 to 104°F) non-condensing
- Safety
- EN 62368-1
- Shock
- 25 g (IEC 60068-2-27)
- Storage Temperature Range
- -40 to 70°C (-40 to 158°F)
- Tripod Mounting
- UNC ¼”-20 (built-in)
- Vibration
- 2 g (IEC 60068-2-6)
- Warranty
- http://www.flir.com/warranty/
General
- Form Factor
- Housing material
- PC and ABS, partially covered with TPE; aluminum
- Packaging Size
- 160 × 118 × 93 mm (6.3 × 4.6 × 3.7 in)
- Packaging Weight
- 0.52 kg (1.14 lb)
- Size (L x W x H)
- 138 × 84 × 24 mm (5.4 × 3.3 × 0.94 in)
