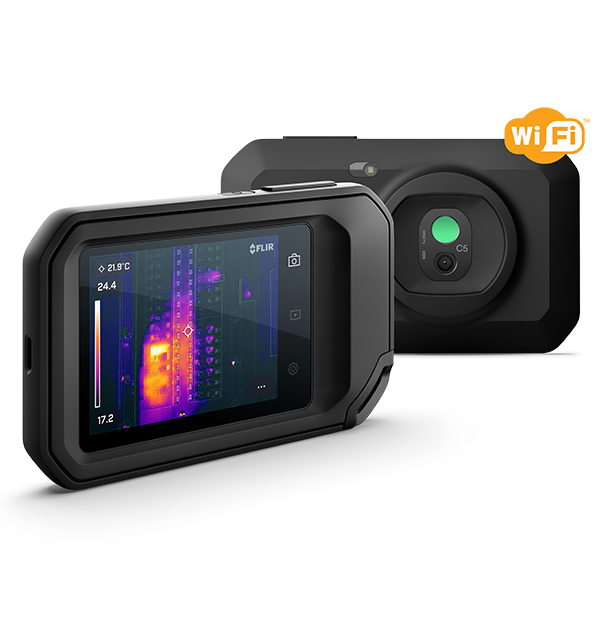

Name: FLIR C5 Compact Thermal Camera with Cloud Connectivity &amp; Wi-Fi
SKU: 703
Availability: InStock

Opis

With the FLIR C5 in your pocket you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more. Identifying hidden problems is easy with the 160 × 120 (19,200 pixels) true thermal imager, MSX® (Multi-Spectral Dynamic Imaging), 5-megapixel visual camera, and LED flashlight. The C5 directly uploads and stores your images to the FLIR Ignite™ cloud, where you can organize and back up files. Then instantly share images with customers or create professional reports that document the problem and required repairs.

Inspect, document, and share quickly with cloud connectivity and Wi-Fi

FIND AND TROUBLESHOOTQuickly find hidden faults and reduce diagnostic time thanks to MSX, 160 × 120 true thermal imaging, and 1-Touch Level/Span
DOCUMENT AND SHAREDirectly upload images using FLIR Ignite cloud connectivity, then create professional reports and email them to customers
RUGGED, RELIABLE, COMPACTTake the pocket-portable C5 with you to every job – it’s IP54 rated for protection against water and dust and designed to withstand a 2 m drop

FLIR Ignite

Improve your team’s efficiency and capabilities with the FLIR Ignite cloud solution. Directly upload, organize, and share images from your Wi-Fi connected FLIR C5. Keep your data safe in one place and easily accessible from any device. Visit the FLIR Ignite page below in the „Related Content” section for more details.

Professional Reports
Software that Helps Your Customer and Your Business

The right image analysis and reporting software can greatly improve your business by making it easier for you and your customers to understand the problem and feel confident that you fixed it.

The advanced analysis and decision-making support offered in FLIR Thermal Studio Pro includes a rich set of measurement tools, batch processing, the ability to pre-plan inspection routes, and customized report templates.

Become a Thermal Studio Expert

Learn to edit images, analyze them, and produce custom reports using FLIR Thermal Studio Suite software with online training from the Infrared Training Center. This virtual class covers everything you need to know, including:

How to adjust image parameters and optimize thermal contrast
How to create batch functions for image processing
How to design a new report template

Never Worry About Your Camera Performance Again

Keep your camera going strong with FLIR CARE and FLIR PROTECT. FLIR CARE provides world-class calibration with performance verification and traceable calibration adjustment services that ensure your thermal data is always accurate. FLIR PROTECT extended warranty and service packages provide a full three years of coverage beyond the respective camera’s factory warranty. FLIR PROTECT customers can also receive a bundled calibration service, discounts on additional services, and options for fast-delivered loaner cameras.

The FLIR C5 Compact Thermal Camera with Cloud Connectivity & Wi-Fi is a three-in-one inspection tool consisting of an infrared imager, visible-light camera and an LED torch. It is also equipped with FLIR Ignite™ Cloud connectivity and wi-fi enabling users to document visible-light and thermal images which can then be shared and/or accessed using any smart device.

The FLIR C5 Compact Thermal Camera is ideal for building inspections, facilities maintenance, electrical repairs, troubleshooting and HVAC/R applications. It can be used to find hot fuses, air leaks and plumbing issues. Please see the video below for an overview of the FLIR C5 Compact Thermal Camera with Cloud Connectivity & Wi-Fi.

Thermal Imaging

The FLIR C5 Compact Thermal Camera is designed to enable easy, accurate and quick identification of hidden problems and potential issues. To this end, it is equipped with a 160 x 120px thermal imager and a 5MP visual camera, a range of imaging modes and thermal colour palettes.

The FLIR C5 Compact Thermal Camera features Thermal, Visual, MSX® and Picture-in-Picture imaging modes. The MSX® imaging mode embosses digital details, captured using the 5MP visual camera, onto the infrared image. This increases the clarity and sharpness of the image allowing the user to identify the source of faults easily and with greater certainty.

In addition to the MSX® imaging function, the FLIR C5 Compact Thermal Camera includes a 1-Touch Level/ Span function: the user needs only touch the 3.5” touchscreen once and this function will automatically adjust the level and span. The 1-Touch Level/ Span function can be used to increase image contrast enabling the user to find hidden faults with greater ease.

The FLIR C5 Compact Thermal Camera is also equipped with a Manual Level/ Span function and an Automatic Level/ Span function, allowing the user to tailor the IR imager to his/her preferences and/or the application.

Further to this, the FLIR C5 Compact Thermal Camera includes six user-selectable thermal palettes: Iron, Grey, Rainbow, Arctic, Lava and Rainbow HC.

Document and Share Data

Visible-light, MSX® and thermal images can be saved with annotations identifying and/or explaining the user’s findings. These images can be uploaded to the FLIR Ignite™ Cloud using the FLIR C5 Compact Thermal Camera’s FLIR Ignite™ Cloud connectivity and wi-fi. The FLIR Ignite™ Cloud can be used to store, back-up and organise visible-light, MSX® and thermal images.

The user can access images saved to the FLIR Ignite™ Cloud using any smart device. Moreover, images can be shared with colleagues and clients using a password-protected link sent via email. This improves job efficiency as potential issues can be communicated quickly, resulting in faster collaborative decisions.

Furthermore, the FLIR C5 Compact Thermal Camera is compatible with reporting software, such as FLIR’s Thermal Studio Software. This allows users to create professional reports including images captured by the FLIR C5 Compact Thermal Camera.

Portable, Practical and Durable

Pocket-sized, the FLIR C5 Compact Thermal Camera can be carried on the user’s person or in a crowded tool bag. This compact camera has been optimised for use in challenging, rugged environments and to this end features a durable, IP54 design capable of resisting dust and water ingress. The FLIR C5 Compact Thermal Camera can also withstand a 2m/ 6.6ft fall.

Moreover, the FLIR C5 Compact Thermal Camera includes an integrated LED torch, which allows the user to conduct inspections in dark and/or difficult-to-access areas. This ergonomic and easy-to-use thermal imaging camera also includes a built-in 3.5-inch touchscreen display.

The FLIR C5 Compact Thermal Camera with Cloud Connectivity & Wi-Fi is a small, simple-to-use and powerful three-in-one inspection and troubleshooting thermal imaging camera, visible-light camera and LED torch. It is ideal for conducting quick inspections, then documenting and sharing findings.

For an introduction to using the FLIR C5 Compact Thermal Camera with Cloud Connectivity & Wi-Fi, please see the following video.

PLEASE NOTE that PASS Ltd provides ITC thermography training courses (up to Level 3). Please contact us on 01642 987 978 or via our online form for further information.
