The FLIR Cx5 is certified for use in many explosive environments, eliminating the need to acquire hot work permits due to gas, vapor, and dust, while making T-Class surveys quick and easy. With FLIR MSX® (Multi-Spectral Dynamic Imaging) and 1-Touch Level/Span, the Cx5 can help you identify potential problems quickly to improve plant performance. The 3.5-inch touchscreen interface is simple to use, and 160 × 120 thermal resolution gives you accurate temperature measurement of nearby targets. Built-in FLIR Ignite™ cloud service provides direct data transfer, storage, and backup, so images are always available and securely stored on all your devices. With the FLIR Cx5 in your toolbox, you’ll always be ready to investigate mechanical and electrical equipment around your production site.
- INSPECT SAFELY IN EXPLOSIVE ENVIRONMENTSInvestigate potential problems from a safe distance using FLIR MSX, 160 × 120 true thermal imaging, and 1-Touch Level/Span.
- RUGGED, RELIABLE, AND CERTIFIEDThe Cx5 eliminates the need for hot work permits in hazardous locations due to gas, vapor and dust, and it conforms to restricted breathing and dust protection standards.
- UPLOAD AND SHARE DATA INSTANTLYWirelessly upload and share data, images, and files to the FLIR Ignite™ cloud, and synchronize the camera with FLIR Thermal Studio software for the most powerful thermography analysis and report generation.
FLIR Ignite™
Improve your team’s efficiency and capabilities with the FLIR Ignite cloud solution. Directly upload, organize, and share images from your Wi-Fi connected FLIR camera. Keep your data safe in one place and easily accessible from any device.
Professional Reports
Software that Helps Your Customer and Your Business
The right image analysis and reporting software can greatly improve your business by making it easier for you and your customers to understand the problem and feel confident that you fixed it.
The advanced analysis and decision-making support offered in FLIR Thermal Studio Pro includes a rich set of measurement tools, batch processing, the ability to pre-plan inspection routes, and customized report templates.
Become a Thermal Studio Expert
Learn to edit images, analyze them, and produce custom reports using FLIR Thermal Studio Suite software with online training from the Infrared Training Center. This virtual class covers everything you need to know, including:
- How to adjust image parameters and optimize thermal contrast
- How to create batch functions for image processing
- How to design a new report template
Never Worry About Your Camera Performance Again
Keep your camera going strong with FLIR CARE and FLIR PROTECT. FLIR CARE provides world-class calibration with performance verification and traceable calibration adjustment services that ensure your thermal data is always accurate. FLIR PROTECT extended warranty and service packages provide a full three years of coverage beyond the respective camera’s factory warranty. FLIR PROTECT customers can also receive a bundled calibration service, discounts on additional services, and options for fast-delivered loaner cameras.

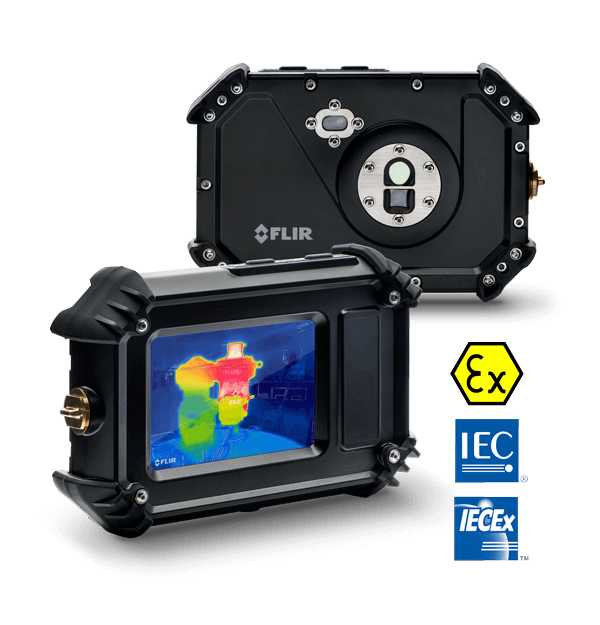

FLIR Cx5 ATEX Hazardous Location-Rated Thermal Camera
Certified for use in Zone 2/22 explosive environments such as water treatment facilities and chemical, oil, and gas plants, the FLIR Cx5 ATEX Hazardous Location Thermal Camera is a rugged, reliable infrared imaging camera. Designed for safe mechanical and electrical equipment inspections in hazardous locations, it makes T-class surveys quick and easy while eliminating the need for hot work permits.
Thermal Imaging
Equipped with a 160 x 120px IR resolution (19 200 pixels), the FLIR Cx5 delivers accurate temperature measurements of nearby targets. Improve your understanding of thermal images using FLIR’s MSX function which overlays digital details onto the IR pictures, allowing you to locate issues instantly. Furthermore, a 1-touch level/span modifies the level and span with a single touch, saving significant time on manual thermal adjustments. Images are visible on the FLIR Cx5’s 3.5-inch touchscreen display.
Wi-Fi & Reporting
Wi-Fi connectivity allows images to be uploaded to the FLIR Ignite Cloud for storage and sharing. It also enables synchronisation with FLIR’s Thermal Studio analysis and reporting software. Annotations may be added to images and reports, making it easy to explain findings.
Compact, Certified Camera
The ATEX thermal camera conforms to restricted breathing and dust protection standards. Additionally, this pocket-sized thermal imager includes an impact-resistant lens and a built-in LED work light.
The FLIR Cx5 ATEX Hazardous Location Thermal Camera is an ergonomic, easy-to-use thermal imager specifically for use in explosive environments.
Key Features
- Rugged, reliable thermal camera certified for use in explosive environments
- Certified for use in Zone 2/22 hazardous environments
- Suitable for use in water treatment facilities and chemical, oil, and gas plants
- Safely inspect mechanical and electrical equipment in hazardous locations
- Makes T-class surveys quick and easy
- Eliminates the need for hot work permits
- IR resolution: 160 x 120px (19 200 pixels)
- Provides accurate temperature measurements of nearby targets
- MSX function
- 1-touch Level/Span
- 3.5-inch touchscreen
- Wi-Fi connectivity
- Upload images to the FLIR Ignite Cloud
- Synchronise with FLIR’s Thermal Studio analysis and reporting software
- Annotate images and reports
- Conforms to restricted breathing and dust protection standards
- Pocket-sized
- Impact-resistant lens
- Built-in LED work light
- Ergonomic, easy-to-use thermal imager specifically for explosive environments
Videos
What’s Included?
- FLIR Cx5 ATEX Hazardous Location Thermal Camera
Specifications
- Accuracy
- At ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F), 0°C to 100°C (32°F to 212°F): ±5°C (±9°F), 100°C to 400°C (212°F to 752°F): ±5%
- Digital Camera
- 5 MP
- Image Modes
- Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
- Storage Media
- Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
Imaging & Optical
- Color Palettes
- Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
- Digital Camera
- 5 MP
- FLIR Screen-EST Mode
- No
- Focus
- Focus free
- Image Frequency
- 8.7 Hz
- Image Modes
- Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
- Minimum Focus Distance
- Thermal: 0.1 m (3.94 in), MSX: 0.3 m (11.8 in)
- Spectral Range
- 8 to 14 µm
Measurement & Analysis
- Accuracy
- At ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F), 0°C to 100°C (32°F to 212°F): ±5°C (±9°F), 100°C to 400°C (212°F to 752°F): ±5%
- Camera size (L x W x H)
- 168 mm× 112 mm × 42 mm (6.6 in × 4.4 in × 1.7 in)
- Measurements correction
- Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation
- Object Temperature Range
- -20°C to 400°C (-4°F to 752°F)
- Thermal Sensitivity
- <70 mK
User Interface
- Touchscreen
- Capacitive touch
Power
- Battery operating time
- 4 hours
- Battery type
- Rechargeable built-in Lithium ion battery
- Charging system
- USB-C (1 A)
- Charging Time
- 2 hours
- External Power Operation
- 5 V, USB-C
Environmental & Certifications
- Certifications
- EN EIC 60079-0: 2018
IEC 60079-15: 2017
EN EIC 60079-31: 2014
IEC 60079-0: 2017
EN EIC 60079-15: 2019
IEC 60079-31: 2013
- Drop test
- 2 m (6.6 ft)
- Encapsulation
- Camera housing and lens: IP54 (IEC 60529)
- Operating Temperature Range
- -10°C to 50°C (14°F to 122°F)
- Storage Temperature Range
- -40°C to 70°C (-40°F to 158°F)
- Tripod Mounting
- UNC ¼”-20 (built-in)
General
- Form Factor
