The FLIR E76 offers complete coverage of near and distant targets through a range of lens options. Pair the E76 with a FLIR FlexView™ dual field of view lens to instantly switch from wide-area to telephoto scanning in one push of a button. A step up from the FLIR E54, the E76 includes laser-assisted autofocus and 3 area measurement boxes. The 320× 240 thermal resolution produces crisp, vibrant imagery that can be enhanced with patented FLIR MSX® technology for added detail and perspective. The onboard FLIR Inspection Route runs pre-planned routes to help you stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E76 images directly from the camera to the cloud for easy, secure storage and sharing.
Inspect and Troubleshoot Faster than Ever
- Interchangeable, Auto-calibrating LensesTelephoto, standard, and wide angle AutoCal™ lenses help users survey large targets quickly, check machines for signs of failure, or inspect electrical systems safely.
- Improved Contrast for Faster DiagnosisUse FLIR 1-Touch Level/Span to instantly improve image contrast and highlight potential electrical or mechanical issues.
- Streamlined ReportingOnboard integration with FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in mic for voice annotation, and report generation features all help the E76 streamline your workday. (*Optional accessory software)
FLIR Ignite™ for Exx-Series
Improve your team’s efficiency and capabilities with the FLIR Ignite cloud solution. Directly upload, organize, and share images from your Wi-Fi connected FLIR Exx-Series camera. Keep your data safe in one place and easily accessible from any device.
Don’t Have Ignite?
FLIR Exx-Series cameras purchased prior to December 2021 may not include the FLIR Ignite cloud connection. You can add it to your camera for free with a firmware upgrade available here.
Get the Most Out of Your FLIR Exx-Series Camera
Register your Exx-Series camera and receive a free credit to attend a FLIR Academy training session (worth $399). It’s simple: register your camera, grab the code, and sign up for expert-led training. These live, interactive online courses give you direct access to skilled trainers where you can ask questions, get real-time feedback, and learn to master your thermal imaging camera with confidence.
Professional Reports
Software that Helps Your Customer and Your Business
The right image analysis and reporting software can greatly improve your business by making it easier for you and your customers to understand the problem and feel confident that you fixed it.
The advanced analysis and decision-making support offered in FLIR Thermal Studio Pro includes a rich set of measurement tools, batch processing, the ability to pre-plan inspection routes, and customized report templates.
Never Worry About Your Camera Performance Again
Keep your camera going strong with FLIR CARE and FLIR PROTECT. FLIR CARE provides world-class calibration with performance verification and traceable calibration adjustment services that ensure your thermal data is always accurate. FLIR PROTECT extended warranty and service packages provide a full three years of coverage beyond the respective camera’s factory warranty. FLIR PROTECT customers can also receive a bundled calibration service, discounts on additional services, and options for fast-delivered loaner cameras.
Become a Thermal Studio Expert
Learn to edit images, analyze them, and produce custom reports using FLIR Thermal Studio Suite software with online training from the Infrared Training Center. This virtual class covers everything you need to know, including:
- How to adjust image parameters and optimize thermal contrast
- How to create batch functions for image processing
- How to design a new report template

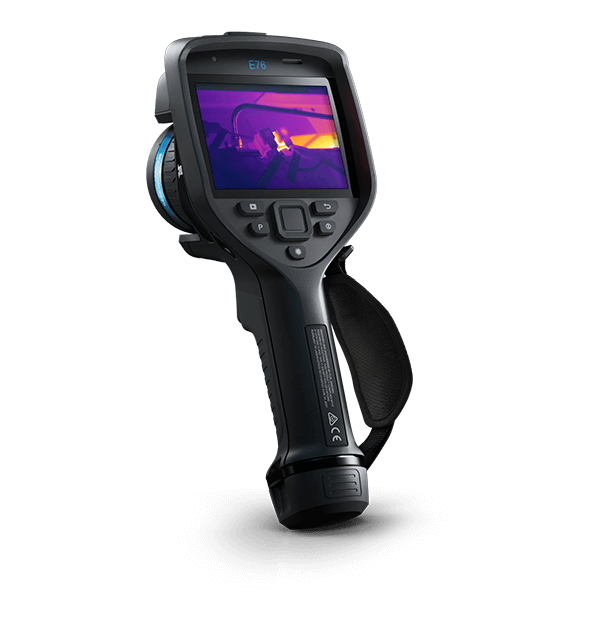

The FLIR E76 Advanced Thermal Imaging Camera is an ergonomic and easy-to-use infrared imaging camera suitable for performing troubleshooting inspections of buildings and electrical and mechanical equipment.
Free FLIR Protect Package
- Extended Warranty & Comprehensive Protection
- Enhanced Value Without Additional Costs
- Priority Support and Services
An extended warranty that covers your camera against material defects for five years – for FREE, to find out more information please visit our blog.
FLIR AutoCal Lenses
The FLIR E76 Advanced Thermal Imaging Camera is available with a range of FLIR AutoCal Lenses. Each of these lenses is optimised for a different purpose:
- 14°, 29mm lens: a telephoto lens with a narrow field-of-view facilitating precise focus and crisp imaging of distant targets
- 24°, 17mm lens: provides a 24° x 18° FOV allowing the user to remain at a safe distance from energised equipment whilst providing a crisp focus when viewing smaller targets
- 42°, 10mm lens: this wide-angle lens provides a large FOV allowing the user to gather maximum information in a single image; this is ideal when inspecting buildings and roofs
- 80°, 5mm Lens: delivers an ultra-wide field-of-view allowing inspectors to capture large targets and/or inspect in tight spaces
There are seven versions of the FLIR E76 Advanced Thermal Imaging Camera available that vary in regards to their supplied FLIR AutoCal Lenses; please see the table below for further details.
| SKU | Lenses |
| 78511-1101 | 14° |
| 78512-1101 | 24° |
| 78513-1101 | 42° |
| 78514-1101 | 14° & 24° |
| 78515-1101 | 24° & 42° |
| 78517-1101 | 14° & 42° |
| 78516-1101 | 14° & 24° & 42° |
| 78519-1101 | 80° |
| 78518-1101 | 14° & 24° (DFOV) |
| 78521-1101 | 24° & 42° (DFOV) |
| 78523-1101 | 14°, 24° & 42° (DFOV) |
The FLIR AutoCal Lenses are interchangeable. The FLIR E76 Advanced Thermal Imaging Camera will auto-calibrate to accommodate the attached lens, ensuring that it will deliver high-quality images and precise thermal measurements.
The FLIR E76 Advanced Thermal Imaging Camera also features the following selectable focus modes:
- Continuous Laser Distance Meter (LDM)
- One-shot LDM
- One-shot contrast
- Manual
FLIR FlexView DFOV Lens
FLIR’s FlexView Dual Field of View Lens allows you to survey sites and take precise temperature measurements without changing lenses. At the push of a button, you can switch from a wide-view 24° lens to a 14° telephoto lens. In addition to this, the FLIR FlexView DFOV Lens makes it possible to place 2.8x pixels on your target using optical zoom. The FLIR FlexView DFOV Lens saves you time and space. It lowers your risk of missing anomalies and allows you to perform efficient, accurate inspections.
Thermal Imaging
The FLIR E76 Advanced Thermal Imaging Camera has a thermal sensitivity of 30mk (at 30°C with a 42° lens) and an IR resolution of 320x240px which provides up to 76 800 measurement points. The FLIR E76 Advanced Thermal Imaging Camera can measure temperatures to an accuracy of ±2%/2°C and supports the following temperature ranges:
- -20°C to +120°C
- 0°C to +650°C
Using the FLIR E76 Advanced Thermal Imaging Camera’s UltraMax® Enhancement function, the user can increase the number of measurement points to 307 200. This function captures a series of radiometric thermal images in quick succession which are combined using FLIR’s UltraMax® algorithm and a FLIR analysis software program. This does not compromise the radiometric data. The UltraMax® function improves the FLIR E76 Advanced Thermal Imaging Camera’s distance-to-spot ratio and is especially useful when analysing small or distant components.
In addition to the UltraMax® Enhancement function, the FLIR E76 Advanced Thermal Imaging Camera includes an MSX® Image Enhancement function which overlays visual details onto thermal images. This improves the thermal image’s depth and clarity which makes it easier for the user to identify the source of faults. Visual images are captured via the FLIR E76 Advanced Thermal Imaging Camera’s integrated 5MP visual camera with a fixed focus and LED light.
The FLIR E76 Advanced Thermal Imaging Camera also includes imaging tools such as a 1-4x continuous digital zoom, three spotmeters (in live mode), and three area meters (in live mode).
The user can also sketch onto thermal images via the FLIR E76 Advanced Thermal Imaging Camera’s 640x480px touchscreen display. Images and videos can be saved with a GPS tag, voice annotation and/or on-screen text. This allows the user to begin building reports on the FLIR E76 Advanced Thermal Imaging Camera. This infrared imager is also compatible with FLIR’s Thermal Studio (included) and Thermal Studio Pro (NOT included) analysis and reporting software programs.
Radiometric, IR and visual images and footage can be saved to the FLIR E76 Advanced Thermal Imaging Camera’s 8GB SD card. Radiometric images are saved as JPEG files. Radiometric, IR and visual footage can also be streamed; to this end the FLIR E76 Advanced Thermal Imaging Camera supports a Wi-Fi interface which allows the user to connect to a smartphone or tablet.
Communication Interfaces & METERLiNK Compatibility
In addition to a Wi-Fi interface, the FLIR E76 Advanced Thermal Imaging Camera supports USB, Bluetooth and DisplayPort interfaces.
The FLIR E76 Advanced Thermal Imaging Camera is also METERLiNK compatible which means it can be connected to other FLIR tools such as clamps and multimeters. Data gathered using these tools can be saved alongside thermal footage and images.
Ergonomic Design
The FLIR E76 Advanced Thermal Imaging Camera features a simple folder and naming structure which makes it easier for the user to recall saved files. Also adding to the FLIR E76 Advanced Thermal Imaging Camera’s ease of use is its fast-responding touchscreen display, practically placed menu buttons, and intuitive user interface. Furthermore, its pistol-shaped design means the FLIR E76 Advanced Thermal Imaging Camera can be operated using a single hand.
The FLIR E76 Advanced Thermal Imaging Camera is suitable for use in rugged environments: it has been drop-tested from 3m (6.6ft).
Additionally, the FLIR E76 Advanced Thermal Imaging Camera has a typical battery life of over 2.5 hours.
Inspection Route Camera Function
Inclusion of FLIR’s exclusive Inspection Route Camera function is particularly useful to thermographers who perform a large number of inspections regularly. It guides the user through a pre-planned inspection route ensuring that he/she gathers images and data at specified inspection points. Images and data are automatically organised by the FLIR E76 Advanced Thermal Imaging Camera.
The thermographer can design his/her inspection route using the Route Creator Plug-in for FLIR’s Thermal Studio Pro Software (NOT included). He/she can add an unlimited number of inspection points which may be organised for maximum efficiency.
The FLIR E76 Advanced Thermal Imaging Camera’s Inspection Route Camera function improves inspection organisation and efficiency and simplifies reporting.
The FLIR E76 Advanced Thermal Imaging Camera is an adaptable, simple-to-use and practical infrared imager optimised for inspecting and troubleshooting buildings and electrical and mechanical equipment.
FLIR E76 Advanced Thermal Imaging Camera Key Features
- An ergonomic and easy-to-use infrared-imaging camera
- Perform troubleshooting inspections on buildings and electrical and mechanical equipment
- Seven versions available that vary in regards to their FLIR AutoCal Lenses
- FLIR’s AutoCal Lenses are interchangeable
- Auto-calibrates to accommodate the attached lens
- Focus modes: Continuous Laser Distance Meter (LDM), One-Shot LDM, One-Shot Contrast and Manual
- Thermal sensitivity: 30mk (at 30°C with a 42° lens)
- IR resolution: 320x240px (76 800 measurement points)
- Accuracy: ±2°C/2%
- Temperature ranges: -20°C to +120°C and 0 to +650°C
- UltraMax® Enhancement function: increases the resolution providing 307 200 measurement points
- MSX® Image Enhancement function
- 5MP visual camera with a fixed focus and LED light
- 1-4x continuous digital zoom
- Three spotmeters (in live mode)
- Three area meters (in live mode)
- Sketch onto thermal images via the display
- 640x480px fast-responding touchscreen display
- Save images and videos with a GPS tag, voice annotations and/or on-screen text
- 8GB SD card
- Radiometric images are saved as JPEG files
- Stream radiometric, IR and visual footage
- Supports Wi-Fi, USB, Bluetooth and DisplayPort interfaces
- METERLiNK compatible
- Simple folder and naming structure
- Practically placed menu buttons
- Intuitive user interface
- Pistol-shaped design
- Can be operated using a single hand
- Drop-tested from 3m (6.6ft)
- Typical battery life: over 2.5 hours
- Inspection Route Camera function: guides user along a pre-defined inspection route
- The Inspection Route Camera function simplifies reporting and improves inspection efficiency and organisation
- The Inspection Route Camera function is ideal for thermographers who regularly carry out large numbers of inspections
- Adaptable, simple-to-use and practical infrared imager
- Optimised for inspecting and troubleshooting buildings and electrical and mechanical equipment
What’s Included?
- FLIR E76 Advanced Thermal Imaging Camera
- Your Choice of Lens or Lenses
- Battery (2 ea)
- Battery Charger
- Power Supply for Battery Charger
- Printed Documentation
- 8 GB SD Card
- USB 2.0 A to USB Type-C cable, 1.0 m
- USB Type-C to HDMI adapter, standard specification UH311
- USB Type-C to USB Type-C cable (USB 2.0 standard), 1.0 m
- Front Protection
- Front Protection Fastener
- Hand Strap
- 2x Hand Strap Brackets (Left and Right)
- Wrist Strap
- Lanyard Strap (Camera)
- Front and Rear Lens Caps
- Lens Cap Strap
- Screws
- Torx T10 Wrench
- Carabiner Hook
- FLIR Thermal Studio Pro Software (3 Month Subscription)
- FLIR Route Plugin for the FLIR Thermal Studio Pro Software (3 Month Subscription)
- Hard Transport Case
Specifications
- IR Resolution
- 320 × 240 pixels
- Thermal Sensitivity/NETD
- <40 mK, 24° at 30°C (86°F)
<50 mK, 14° at 30°C (86°F)
- Accuracy
- ±2°C (±3.6°F) or ±2% of the reading
- Field of view (FOV)
- 24° × 18°, 14° × 10°
- Digital Camera
- 5 MP, with built-in LED photo/video lamp
- Display
- 4″, 640 × 480 pixel touchscreen LCD with auto-rotation
- Storage Media
- Removable SD card
Imaging & Optical
- Color Palettes
- Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
- Detector Type and Pitch
- Uncooled microbolometer, 17 µm
- Digital Camera
- 5 MP, with built-in LED photo/video lamp
- Digital Zoom
- 1-4x continuous
- Field of view (FOV)
- 24° × 18°, 14° × 10°
- f-number
- 24°: 1.5
14°: 1.5
- Focal Length
- 24°: 17 mm (0.67 in)
14°: 29 mm (1.41 in)
- Focus
- Continuous LDM, One-shot LDM, One-shot contrast, Manual
- Image Frequency
- 30 Hz
- IR Resolution
- 320 × 240 pixels
- Lens Identification
- Automatic
- Minimum Focus Distance
- 24°: 0.18 m (0.59 ft), 14°: 1.0 m (3.28 ft)
- Minimum Focus Distance with MSX
- 24°: 0.5 m (1.64 ft)
14°: 1.0 m (3.28 ft)
- Non-radiometric IR video streaming
- H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
- Picture-in-Picture
- Resizable and movable
- Radiometric IR video recording
- Real-time radiometric recording (.csq)
- Radiometric IR video streaming
- Yes, over UVC
- Spatial resolution (IFOV)
- 24°: 1.33 mrad/pixel
14°: 0.75 mrad/pixel
- Spectral Range
- 7.5-14 µm
- Thermal Sensitivity/NETD
- <40 mK, 24° at 30°C (86°F)
<50 mK, 14° at 30°C (86°F)
- UltraMax
- Yes
- Viewfinder
- No
Measurement & Analysis
- Accuracy
- ±2°C (±3.6°F) or ±2% of the reading
- Measurement Presets
- No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
- Object Temperature Range
- -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F). 300 to 1000°C (572 to 1832°F) range available with purchase of T199559 High Temperature Option
- Spot Meter
- 3 ea. in live mode
User Interface
- Display
- 4″, 640 × 480 pixel touchscreen LCD with auto-rotation
- Text
- Predefined list or touchscreen keyboard
- Voice
- 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth®
Power
- Battery operating time
- >2.5 hours at 25°C (68°F) and typical use
- Battery type
- Rechargeable Li-ion battery
Environmental & Certifications
- Operating Temperature Range
- -15 to 50°C (5 to 122°F)
- Safety
- EN/UL/CSA/PSE 60950-1
- Storage Temperature Range
- -40 to 70°C (-40 to 158°F)
General
- FLIR Inspection Route
- Enabled in camera
- Form Factor
- Pistol
- Laser Pointer
- Yes
- Packaging
- Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Starter
Technical InformationSpecification
Teledyne FLIR Exx-Series Advanced Thermal Imaging Cameras Technical Specifications
Model E52 E54 E76 E86 E96 IR resolution 240 × 180 pixels 320 × 240 pixels 320 × 240 pixels 464 × 348 pixels 640 × 480 pixels Resolution with UltraMax® – 307,200 pixels 645,888 pixels 1.2 megapixels MSX® image enhancement Yes: details from visual camera add depth and perspective Built-in visual camera 5 MP, fixed focus, with built in LED light Thermal sensitivity <50 mK @ 30°C (86°F) <40 mK @ 30°C (86°F) <30 mK @ 30°C (86°F), 42° lens Temperature range -20°C to 120°C
(-4°F to 248°F);
0°C to 550°C
(32°F to 1202°F)-20°C to 120°C
(-4°F to 248°F);
0°C to 650°C
(32°F to 1202°F)-20°C to 120°C
(-4°F to 248°F);
0°C to 650°C
(32°F to 1202°F)-20°C to 120°C (-4°F to 248°F);
0°C to 650°C (32°F to 1202°F);
300°C to 1500°C (572°F to 2732°F)Optional temperature range – 300°C to 1000°C
(572°F to 1832°F)– – Accuracy ±2°C (±3.6°F) or ±2% of the reading Focus modes Manual Continuous laser distance meter (LDM), one-shot LDM,
one-shot contrast, manualDigital zoom 1–4x continuous 1–8x continuous Measurement tools 3 spotmeters in live mode, 1 area meter in live mode 3 spotmeters in live mode, 3 area meters in live mode Measurement presets None, center spot, hot spot, cold spot None, center spot, hot spot, cold spot 3 spots, Hot Spot-spot User Presets 1&2 Available lenses None (fixed lens) FLIR AutoCalTM 14°, 24°, 42°, macro (2x) 1-Touch Level/Span Yes: automatic contrast enhancement Laser pointer Yes Area measurement
information– – Yes On-camera routing software FLIR Inspection RouteTM — enabled On-camera report building Voice annotation and GPS tagging to images and video; on-screen text; sketch on infrared images from touchscreen FLIR software integration FLIR Thermal Studio Suite, FLIR Research Studio Radiometric JPEG Yes IR, radiometric, visual video
recordingYes IR, radiometric, visual video
streamingYes, over UVC (radiometric, non-radiometric, visual) and Wi-Fi (non-radiometric, visual) Communication modes USB 2.0, Bluetooth®, Wi-Fi, DisplayPort Cloud services FLIR Ignite™ for direct, secure image uploading, organizing, and sharing via Wi-Fi METERLiNK® Yes via Bluetooth Display 640 × 480 pixels (VGA) Dragontrail® touchscreen Drop-testing 2 m (6.6 ft) Battery operation time >2.5 hours, typical use Note *Hot spot to centre spot Delta measurement
