Opis
The FLIR E86 is packed with high-performance features needed for fast, accurate detection, and when paired with a FLIR FlexView™ dual field-of-view lens you can instantly switch from wide-area to telephoto scanning. This 464 × 348 pixel thermal camera has an expanded temperature measurement range for easier detection of hot spots and hidden anomalies on electrical and mechanical assets. Interchangeable AutoCal™ lenses offer complete coverage of near and distant targets, while FLIR imaging technology such as UltraMax® and MSX® ensure crisp, vibrant thermal images. The onboard FLIR Inspection Route runs pre-planned routes to help you stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E86 images directly from the camera to the cloud for easy, secure storage and sharing.
Enhanced Resolution, Faster Inspections
- Laser Distance MeasurementThe laser distance meter aids in quick, precise autofocusing and provides data for on-screen area measurement (m² or ft²).
- Intelligent AutoCal™ OpticsInterchangeable, auto-calibrating lenses—from telephoto to wide-angle—allow users to target electrical hot spots safely, check for mechanical faults, and survey roofs or building envelopes quickly.
- Streamlined ReportingOnboard integration with FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in mic for voice annotation, and report generation features all help the E86 streamline your workday. (*Optional accessory software)
FLIR Ignite™ for Exx-Series
Improve your team’s efficiency and capabilities with the FLIR Ignite cloud solution. Directly upload, organize, and share images from your Wi-Fi connected FLIR Exx-Series camera. Keep your data safe in one place and easily accessible from any device.
Don’t Have Ignite?
FLIR Exx-Series cameras purchased prior to December 2021 may not include the FLIR Ignite cloud connection. You can add it to your camera for free with a firmware upgrade available here.
Get the Most Out of Your FLIR Exx-Series Camera
Register your Exx-Series camera and receive a free credit to attend a FLIR Academy training session (worth $399). It’s simple: register your camera, grab the code, and sign up for expert-led training. These live, interactive online courses give you direct access to skilled trainers where you can ask questions, get real-time feedback, and learn to master your thermal imaging camera with confidence.
Professional Reports
Software that Helps Your Customer and Your Business
The right image analysis and reporting software can greatly improve your business by making it easier for you and your customers to understand the problem and feel confident that you fixed it.
The advanced analysis and decision-making support offered in FLIR Thermal Studio Pro includes a rich set of measurement tools, batch processing, the ability to pre-plan inspection routes, and customized report templates.
Never Worry About Your Camera Performance Again
Keep your camera going strong with FLIR CARE and FLIR PROTECT. FLIR CARE provides world-class calibration with performance verification and traceable calibration adjustment services that ensure your thermal data is always accurate. FLIR PROTECT extended warranty and service packages provide a full three years of coverage beyond the respective camera’s factory warranty. FLIR PROTECT customers can also receive a bundled calibration service, discounts on additional services, and options for fast-delivered loaner cameras.
Become a Thermal Studio Expert
Learn to edit images, analyze them, and produce custom reports using FLIR Thermal Studio Suite software with online training from the Infrared Training Center. This virtual class covers everything you need to know, including:
- How to adjust image parameters and optimize thermal contrast
- How to create batch functions for image processing
- How to design a new report template

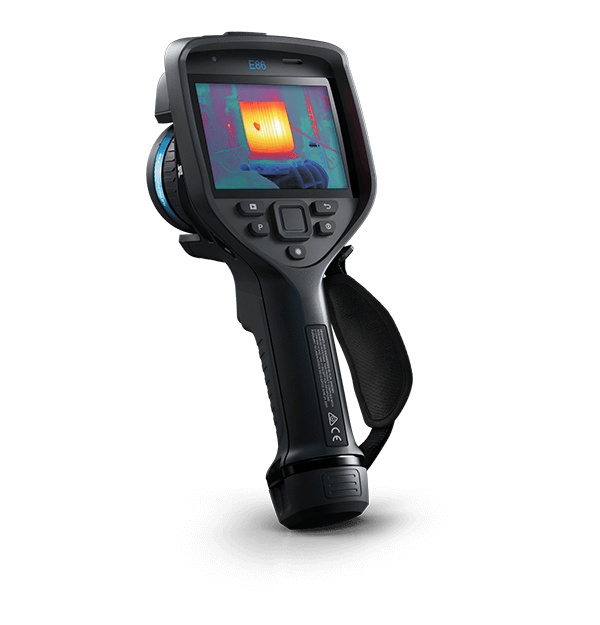

The FLIR E86 Advanced Thermal Imaging Camera is a rugged, easy-to-use and adaptable infrared-imaging camera suitable for inspecting and troubleshooting buildings and electrical and mechanical equipment.
Fluke AutoCal Lenses
There are seven versions of the FLIR E86 Advanced Thermal Imaging Camera available which differ in regards to their included FLIR AutoCal Lens/ Lenses; please see the table below for further information.
| SKU | Lenses |
| 78511-1301 | 14° |
| 78512-1301 | 24° |
| 78513-1301 | 42° |
| 78514-1301 | 14° & 24° |
| 78515-1301 | 24° & 42° |
| 78517-1301 | 14° & 42° |
| 78516-1301 | 14° & 24° & 42° |
| 78519-1301 | 80° |
| 78518-1301 | Dual FOV 14° & 24° |
| 78523-1301 | Dual FOV 24° & 42° |
| 78521-1301 | Dual FOV 14°, 24° & 42° |
The FLIR AutoCal Lenses are optimised for particular purposes:
- 14°, 29mm lens: a telephoto lens with a narrow field-of-view facilitating precise focus and crisp imaging of distant targets
- 24°, 17mm lens: provides a 24° x 18° FOV allowing the user to remain at a safe distance from energised equipment whilst providing a crisp focus when viewing smaller targets
- 42°, 10mm lens: this wide-angle lens provides a large FOV allowing the user to gather maximum information in a single image; this is ideal when inspecting buildings and roofs
- 80°, 5mm Lens: delivers an ultra-wide field-of-view allowing inspectors to capture large targets and/or inspect in tight spaces
The FLIR AutoCal Lenses are interchangeable. To ensure the FLIR E86 Advanced Thermal Imaging Camera will always provide high-quality thermal images and precise temperature measurements, it will auto-calibrate to accommodate the attached lens.
The FLIR E86 Advanced Thermal Imaging Camera also features four selectable focus modes including:
- Continuous Laser Distance Meter (LDM)
- One-Shot LDM
- One-Shot Contrast
- Manual
FLIR FlexView DFOV Lens
FLIR’s FlexView Dual Field of View Lens allows you to survey sites and take precise temperature measurements without changing lenses. At the push of a button, you can switch from a wide-view 24° lens to a 14° telephoto lens. In addition to this, the FLIR FlexView DFOV Lens makes it possible to place 2.8x pixels on your target using optical zoom. The FLIR FlexView DFOV Lens saves you time and space. It lowers your risk of missing anomalies and allows you to perform efficient, accurate inspections.
Thermal Imaging
The FLIR E86 Advanced Thermal Imaging Camera is able to measure temperatures to an accuracy of ±2°C/2%; it supports the following temperature ranges:
- -20°C to +120°C
- 0°C to +650°C
- 300°C to 1500°C
This thermal imaging camera has a sensitivity of 30mK (at 30°C with a 42° lens) and an IR resolution of 464x348px which provides 161 472 measurement points.
The UltraMax® Enhancement function can be used to increase the number of measurement points to 645 888. It captures a series of radiometric images which are combined, without compromising the radiometric data, using an UltraMax® algorithm and a suitable FLIR analysis software program. The UltraMax® Enhancement improves the FLIR E86 Advanced Thermal Imaging Camera’s distance-to-spot ratio and is particularly useful when inspecting small or distant components.
The FLIR E86 Advanced Thermal Imaging Camera also includes an MSX® Image Enhancement function which improves the depth and clarity of thermal images by overlaying digital details. Digital images are captured using the 5MP visual camera with a fixed focus and LED light. Increased image detail and sharpness makes it easier for the user to identify the source of faults.
The FLIR E86 Advanced Thermal Imaging Camera also includes imaging tools such as a 1-4x continuous digital zoom, three spotmeters (in live mode), and three areas meters (in live mode). Furthermore, the user can begin building reports on the FLIR E86 Advanced Thermal Imaging Camera as he/she can sketch onto thermal images via the 640x480px display, and can save footage or images with a GPS tag, voice annotations, and/or on-screen text. The user can save radiometric, IR and visual images and footage to the FLIR E86 Advanced Thermal Imaging Camera’s 8GB SD card. Radiometric files are saved as JPEG files.
The FLIR E86 Advanced Thermal Imaging Camera is also compatible with FLIR’s analysis and reporting software programs including FLIR Thermal Studio (included) and FLIR Thermal Studio Pro (NOT included).
In addition to this, the user can stream radiometric, IR and visual footage. The FLIR E86 Advanced Thermal Imaging Camera includes a Wi-Fi interface, allowing the user to connect to a smartphone or tablet, as well as USB, Bluetooth and DisplayPort interfaces.
METERLiNK Compatibility
METERLiNK compatibility means the FLIR E86 Advanced Thermal Imaging Camera can be connected to other FLIR tools such as clamps and multimeters. Data collected using these tools can be saved alongside thermal footage and images.
Ergonomic
Saved files can be recalled easily as a result of the FLIR E86 Advanced Thermal Imaging Camera’s simple folder and naming structure. Also adding to the FLIR E86 Advanced Thermal Imaging Camera’s simplicity of use is its intuitive user interface, practically placed menu buttons, and fast-responding touchscreen display. The FLIR E86 Advanced Thermal Imaging Camera’s pistol-shaped design also means that it can be operated using a single hand.
Additionally, the FLIR E86 Advanced Thermal Imaging Camera has been drop-tested from 3m (6.6ft) and has a typical battery life of over 2.5 hours.
Inspection Route Camera Function
The FLIR E86 Advanced Thermal Imaging Camera includes FLIR’s exclusive Inspection Route Camera function which guides the user through a pre-planned inspection route ensuring that he/she gathers data and images at each specified inspection point. Collected information and media is automatically organised by the FLIR E86 Advanced Thermal Imaging Camera. This function is ideal for thermographers who regularly inspect a lot of buildings and/or electrical and mechanical equipment as it improves inspection organisation and efficiency and simplifies reporting.
Inspection routes are designed using the Route Creator Plug-in for FLIR’s Thermal Studio Pro Software (NOT included). Thermographers can add in as many inspection points as necessary which may be arranged to provide maximum efficiency.
The FLIR E86 Advanced Thermal Imaging Camera is a versatile, simple-to-use and ergonomic infrared-imaging camera suitable for troubleshooting and inspecting buildings and electrical and mechanical equipment.
FLIR E86 Advanced Thermal Imaging Camera Key Features
- A rugged, easy-to-use and adaptable infrared-imaging camera suitable for inspecting and troubleshooting buildings and electrical and mechanical equipment
- Seven versions available that differ in regards to their FLIR AutoCal Lenses
- Auto-calibrates to accommodate the attached lens
- Four selectable focus modes: Continuous Laser Distance Meter (LDM), One-Shot LDM, One-Shot Contrast, and Manual
- Accuracy: ±2°C/2%
- Temperature ranges: -20°C to +120°C; 0°C to +650°C; and 300°C to 1500°C
- Thermal sensitivity: 30mK (at 30°C with a 42° lens)
- IR resolution: 464x348px (161 472 measurement points)
- UltraMax® Enhancement function: increases the number of measurement points to 645 888
- MSX® Image Enhancement function
- 5MP visual camera with a fixed focus and LED light
- 1-4x continuous digital zoom
- Three spotmeters (in live mode)
- Three area meters (in live mode)
- Sketch onto thermal images via the display
- Fast-responding touchscreen display with a 640x480px resolution
- Save images and videos with a GPS tag, voice annotations and/or on-screen text
- Save radiometric, IR and visual images and footage
- Radiometric files are saved as JPEG files
- 8GB SD card
- Compatible with FLIR’s Thermal Studio Software (included)
- Compatible with FLIR’s Thermal Studio Pro Software (NOT included)
- Stream radiometric, IR and visual footage
- Includes Wi-Fi, Bluetooth, USB and DisplayPort interfaces
- METERLiNK compatibility
- Simple folder and naming structure
- Intuitive user interface
- Practically placed menu buttons
- Pistol-shaped design
- Can be operated using a single hand
- Drop-tested from 3m (6.6ft)
- Typical battery life: over 2.5 hours
- Inspection Route Camera function: guides the user along a pre-defined inspection route
- The Inspection Route Camera function simplifies reporting and improves inspection efficiency and organisation
- The Inspection Route Camera function is ideal for thermographers who regularly carry out large numbers of inspections
- Versatile, simple-to-use and ergonomic infrared-imaging camera for troubleshooting and inspecting buildings and electrical and mechanical equipment
What’s Included?
- FLIR E86 Advanced Thermal Imaging Camera
- Your Choice of Lens or Lenses
- Battery (2 ea)
- Battery Charger
- Power Supply for Battery Charger
- Printed Documentation
- 8 GB SD Card
- USB 2.0 A to USB Type-C cable, 1.0 m
- USB Type-C to HDMI adapter, standard specification UH311
- USB Type-C to USB Type-C cable (USB 2.0 standard), 1.0 m
- Front Protection
- Front Protection Fastener
- Hand Strap
- 2x Hand Strap Brackets (Left and Right)
- Wrist Strap
- Lanyard Strap (Camera)
- Front and Rear Lens Caps
- Lens Cap Strap
- Screws
- Torx T10 Wrench
- Carabiner Hook
- FLIR Thermal Studio Pro Software (3 Month Subscription)
- FLIR Route Plugin for the FLIR Thermal Studio Pro Software (3 Month Subscription)
- Hard Transport Case
.
Specifications
- IR Resolution
- 464 × 348 pixels
- Thermal Sensitivity/NETD
- <40 mK, 24° at 30°C (86°F)
<50 mK, 14° at 30°C (86°F)
- Accuracy
- ±2°C (±3.6°F) or ±2% of the reading
- Field of view (FOV)
- 24° × 18°, 14° × 10°
- Digital Camera
- 5 MP, with built-in LED photo/video lamp
- Display
- 4″, 640 × 480 pixel touchscreen LCD with auto-rotation
- Storage Media
- Removable SD card
Imaging & Optical
- Color Palettes
- Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
- Detector Type and Pitch
- Uncooled microbolometer, 17 µm
- Digital Camera
- 5 MP, with built-in LED photo/video lamp
- Digital Zoom
- 1-4× continuous
- Field of view (FOV)
- 24° × 18°, 14° × 10°
- f-number
- 24°: 1.3
14°: 1.3
- Focal Length
- 24°: 17 mm (0.67 in)
14°: 29 mm (1.41 in)
- Focus
- Continuous LDM, One-shot LDM, One-shot contrast, Manual
- Image Frequency
- 30 Hz
- IR Resolution
- 464 × 348 pixels
- Lens Identification
- Automatic
- Minimum Focus Distance
- 24°: 0.18 m (0.59 ft), 14°: 1.0 m (3.28 ft)
- Minimum Focus Distance with MSX
- 24°: 0.5 m (1.64 ft)
14°: 1.0 m (3.28 ft)
- Non-radiometric IR video streaming
- H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
- Picture-in-Picture
- Resizable and movable
- Radiometric IR video recording
- Real-time radiometric recording (.csq)
- Radiometric IR video streaming
- Yes, over UVC
- Spatial resolution (IFOV)
- 24°: 0.92 mrad/pixel
14°: 0.52 mrad/pixel
- Spectral Range
- 7.5-14 µm
- Thermal Sensitivity/NETD
- <40 mK, 24° at 30°C (86°F)
<50 mK, 14° at 30°C (86°F)
- UltraMax
- Yes
- Viewfinder
- No
Measurement & Analysis
- Accuracy
- ±2°C (±3.6°F) or ±2% of the reading
- Measurement Presets
- No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
- Object Temperature Range
- -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F); 300 to 1500°C (572 to 2732°F)
- Spot Meter
- 3 ea. in live mode
User Interface
- Display
- 4″, 640 × 480 pixel touchscreen LCD with auto-rotation
- Text
- Predefined list or touchscreen keyboard
- Voice
- 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth®
Power
- Battery operating time
- >2.5 hours at 25°C (68°F) and typical use
- Battery type
- Rechargeable Li-ion battery
Environmental & Certifications
- Operating Temperature Range
- -15 to 50°C (5 to 122°F)
- Safety
- EN/UL/CSA/PSE 60950-1
- Storage Temperature Range
- -40 to 70°C (-40 to 158°F)
General
- FLIR Inspection Route
- Enabled in camera
- Form Factor
- Pistol
- Laser Pointer
- Yes
- Packaging
- Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Starter
