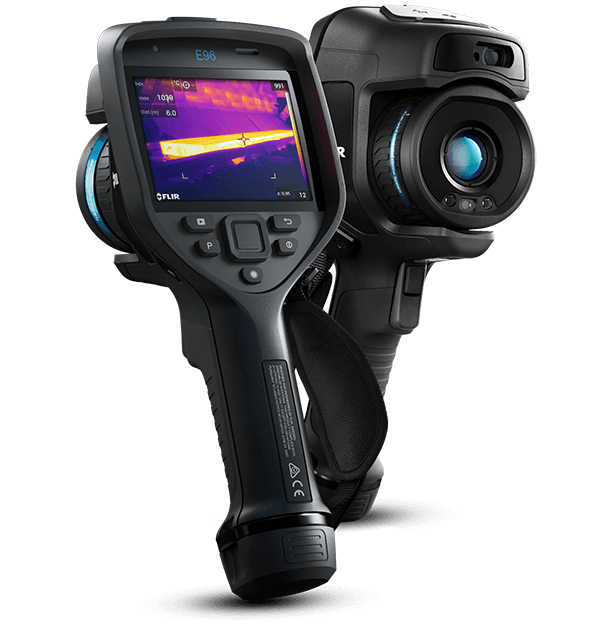

The FLIR E96 is our first pistol-grip camera with 640 × 480 thermal resolution so inspectors can survey high-voltage, hazardous targets safely and quickly diagnose electrical and mechanical failures. The FLIR E96 offers complete coverage of near and distant targets through a range of lens options. Pair the E96 with a FLIR FlexView™ dual field-of-view lens to instantly switch from wide-area to telephoto scanning in one push of a button. The onboard FLIR Inspection Route runs pre-planned routes to help inspectors stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E96 images directly from the camera to the cloud for easy, secure storage and sharing.
- Outstanding Thermal ImageryThe 640 × 480 thermal resolution plus FLIR UltraMax® and MSX® image enhancement ensure the E96 produces the most virbrant, easiest-to-interpret images in its class.
- Intelligent AutoCal™ OpticsInterchangeable, auto-calibrating lenses—from telephoto to wide-angle—allow users to target electrical hot spots safely, check for mechanical faults, and survey roofs or building envelopes quickly.
- Streamlined ReportingOnboard integration with FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in mic for voice annotation, and report generation features all help the E96 streamline your workday. (*Optional accessory software)
FLIR Ignite™ for Exx-Series
Improve your team’s efficiency and capabilities with the FLIR Ignite cloud solution. Directly upload, organize, and share images from your Wi-Fi connected FLIR Exx-Series camera. Keep your data safe in one place and easily accessible from any device.
Don’t Have Ignite?
FLIR Exx-Series cameras purchased prior to December 2021 may not include the FLIR Ignite cloud connection. You can add it to your camera for free with a firmware upgrade available here.
Get the Most Out of Your FLIR Exx-Series Camera
Register your Exx-Series camera and receive a free credit to attend a FLIR Academy training session (worth $399). It’s simple: register your camera, grab the code, and sign up for expert-led training. These live, interactive online courses give you direct access to skilled trainers where you can ask questions, get real-time feedback, and learn to master your thermal imaging camera with confidence.
Professional Reports
Software that Helps Your Customer and Your Business
The right image analysis and reporting software can greatly improve your business by making it easier for you and your customers to understand the problem and feel confident that you fixed it.
The advanced analysis and decision-making support offered in FLIR Thermal Studio Pro includes a rich set of measurement tools, batch processing, the ability to pre-plan inspection routes, and customized report templates.
Never Worry About Your Camera Performance Again
Keep your camera going strong with FLIR CARE and FLIR PROTECT. FLIR CARE provides world-class calibration with performance verification and traceable calibration adjustment services that ensure your thermal data is always accurate. FLIR PROTECT extended warranty and service packages provide a full three years of coverage beyond the respective camera’s factory warranty. FLIR PROTECT customers can also receive a bundled calibration service, discounts on additional services, and options for fast-delivered loaner cameras.
Become a Thermal Studio Expert
Learn to edit images, analyze them, and produce custom reports using FLIR Thermal Studio Suite software with online training from the Infrared Training Center. This virtual class covers everything you need to know, including:
- How to adjust image parameters and optimize thermal contrast
- How to create batch functions for image processing
- How to design a new report template
The FLIR E96 Advanced Thermal Imaging Camera is the highest resolution model in FLIR’s Exx Series of Advanced Thermal Imaging Cameras. It has an IR resolution of 640x480px which provides 307 200 measurement points.
Free FLIR Total Protect Package
- Extended warranty & comprehensive protection
- Enhanced value without additional costs
- Priority support and services
- Service freight covered
- 1x discounted FLIR Total Care service
- Use of a loan camera when your thermal camera is sent for its scheduled service
- Fast-tracked support and service
- 10% off additional FLIR Care services
An extended warranty that covers your camera against material defects for five years – for FREE, to find out more information please visit our blog.
FLIR AutoCal Lenses
There are seven versions of the FLIR E96 Advanced Thermal Imaging Camera available; these differ in regards to their FLIR AutoCal Lenses. Please see the table below for further details.
| SKU | Lenses |
| 90201-0101 | 14° |
| 90202-0101 | 24° |
| 90203-0101 | 42° |
| 90204-0101 | 14° & 24° |
| 90205-0101 | 24° & 42° |
| 90207-0101 | 14° & 42° |
| 90206-0101 | 14° & 24° & 42° |
| 90209-0101 | 80° |
| 90208-0101 | DFOV 14° & 24° |
| 90212-0101 | DFOV 24° & 42° |
| 90223-0101 | DFOV 14°, 24° & 42° |
Each of the FLIR AutoCal Lenses has been optimised for a particular purpose:
- 14°, 29mm lens: a telephoto lens with a narrow field-of-view facilitating precise focus and crisp imaging of distant targets
- 24°, 17mm lens: provides a 24° x 18° FOV allowing the user to remain at a safe distance from energised equipment whilst providing a crisp focus when viewing smaller targets
- 42°, 10mm lens: this wide-angle lens provides a large FOV allowing the user to gather maximum information in a single image; this is ideal when inspecting buildings and roofs
- 80°, 5mm Lens: delivers an ultra-wide field-of-view allowing inspectors to capture large targets and/or inspect in tight spaces
These lenses can be used interchangeably and the FLIR E96 Advanced Thermal Imaging Camera will auto-calibrate to accommodate the attached lens. This ensures that the FLIR E96 Advanced Thermal Imaging Camera will deliver high-quality thermal images and precise temperature measurements irrespective of the FLIR AutoCal Lens being used.
Additionally, the FLIR E96 Advanced Thermal Imaging Camera features four selectable focus modes:
- Continuous Laser Distance Meter (LDM)
- One-Shot LDM
- One-Shot Contrast
- Manual
Teledyne FLIR FlexView DFOV Lens Overview
Teledyne FLIR’s FlexView Dual Field of View Lens allows you to survey sites and take precise temperature measurements without changing lenses. At the push of a button, you can switch from a wide-view lens to a telephoto lens. In addition to this, the Teledyne FLIR FlexView DFOV Lens makes it possible to place 2.8x pixels on your target using optical zoom. The Teledyne FLIR FlexView DFOV Lens saves you time and space. It lowers your risk of missing anomalies and allows you to perform efficient, accurate inspections.
Thermal Imaging
In addition to an IR resolution of 640x480px, providing 307 200 measurement points, the FLIR E96 Advanced Thermal Imaging Camera has a thermal sensitivity of 30mK (at 30°C with a 42° Lens). It can measure temperatures to an accuracy of ±2°C/2% and supports the following temperature ranges:
- -20°C to +120°C
- 0°C to +650°C
- 300°C to 1500°C
Thermographers can increase the number of measurement points to 1.2 megapixels using the FLIR E96 Advanced Thermal Imaging Camera’s UltraMax® Enhancement function. This function captures a series of images which are combined using an UltraMax® algorithm and a suitable FLIR analysis software program. This process does not compromise radiometric data. The UltraMax® Enhancement function is particularly useful when inspecting small or distant components as it improves the FLIR E96 Advanced Thermal Imaging Camera’s distance-to-spot ratio.
To improve the ease with which the user can identify and pinpoint the source of faults, the FLIR E96 Advanced Thermal Imaging Camera includes an MSX® Image Enhancement function and a 5MP, fixed focus visual camera with an LED light. The MSX® Image Enhancement function overlays visible details, captured using the 5MP camera, onto thermal images to improve image depth and clarity.
The FLIR E96 Advanced Thermal Imaging Camera is also equipped with a number of imaging, measurement and reporting tools such as a 1-8x continuous digital zoom, three spotmeters (in live mode), and three area meters (in live mode). Additionally, the user can sketch onto thermal images via the 640x480px touchscreen display and can save media with a GPS tag, voice annotations, and/or on-screen text.
The user can save radiometric, IR and visual images and footage to the 8GB SD card. He/she can also stream radiometric, IR and visual footage as the FLIR E96 Advanced Thermal Imaging Camera includes a Wi-Fi interface which can be used to connect to a smartphone or tablet. The FLIR E96 Advanced Thermal Imaging Camera also supports Bluetooth, USB and DisplayPort interfaces.
Furthermore, the FLIR E96 Advanced Thermal Imaging Camera is compatible with analysis and reporting software such as FLIR Thermal Studio (included) and FLIR Thermal Studio Pro (NOT included).
METERLiNK Compatibility
The user can save data gathered using FLIR multimeters and clamps alongside thermal images and videos as the FLIR E96 Advanced Thermal Imaging Camera is METERLiNK enabled. This allows it to connect with FLIR’s tools.
Ergonomic
Recalling saved files is easy due to the inclusion of a simple naming and folder structure. Also adding to the FLIR E96 Advanced Thermal Imaging Camera’s ease-of-use is its intuitive user interface, practically placed menu buttons, and fast-responding touchscreen display. Moreover, its pistol-shaped design means it can be operated using a single hand.
Additionally, the FLIR E96 Advanced Thermal Imaging Camera has an average battery life of more than 2.5 hours and has been drop tested from 3m (6.6ft).
Inspection Route Function
The FLIR E96 Advanced Thermal Imaging Camera is ideal for thermographers who inspect a lot of buildings and/or equipment regularly. This is because it includes FLIR’s Inspection Route Camera function which guides the user through a customised, pre-planned inspection route, ensuring he/she gathers images and data at specified inspection points. This function improves inspection organisation and efficiency and simplifies reporting.
Customised inspection routes are created using the Route Creator Plug-in for FLIR’s Thermal Studio Pro Software (NOT included). Thermographers can add an unlimited amount of inspection points which may be organised for maximum efficiency.
The FLIR E96 Advanced Thermal Imaging Camera is an adaptable, easy-to-use, high-resolution infrared-imager ideal for inspecting and troubleshooting buildings and electrical and mechanical equipment.
FLIR E96 Advanced Thermal Imaging Camera Key Features
- The highest resolution model in FLIR’s 2020 Exx Series of Advanced Thermal Imaging Cameras
- IR resolution: 640x480px (307 200 measurement points)
- Seven versions available with different FLIR AutoCal Lenses
- Auto-calibrates to accommodate the attached lens
- Four selectable focus modes: Continuous Laser Distance Meter (LDM), One-Shot LDM, One-Shot Contrast, and Manual
- Thermal sensitivity: 30mK (at 30°C with a 42° lens)
- Accuracy: ±2°C/2%
- Temperature ranges: -20°C to +120°C; 0°C to +650°C; and 300°C to 1500°C
- UltraMax® Enhancement function: increases the number of measurement points to 1.2 megapixels
- MSX® Image Enhancement function
- 5MP, fixed focus visual camera with an LED light
- 1-8x continuous digital zoom
- Three spotmeters (in live mode)
- Three area meters (in live mode)
- Sketch onto thermal images via the display
- Fast-responding, touchscreen display with a 640x480px resolution
- Save radiometric, IR and visual images and videos
- 8GB SD card
- Stream radiometric, IR and visual footage
- Supports Wi-Fi, Bluetooth, USB and DisplayPort interfaces
- Compatible with FLIR Thermal Studio Software (included)
- Compatible with FLIR Thermal Studio Pro Software (NOT included)
- METERLiNK enabled
- Simple naming and folder structure
- Intuitive user interface
- Practically placed menu buttons
- Fast-responding touchscreen display
- Pistol-shaped design
- Can be operated using a single hand
- Average battery life: over 2.5 hours
- Drop-tested from 3m (6.6ft)
- Inspection Route Camera function: guides the user along a pre-defined inspection route
- The Inspection Route Camera function simplifies reporting and improves inspection efficiency and organisation
- The Inspection Route Camera function is ideal for thermographers who regularly carry out large numbers of inspections
- An adaptable, easy-to-use, high-resolution infrared-imager
- Ideal for troubleshooting buildings and electrical and mechanical equipment
What’s Included?
- FLIR E96 Advanced Thermal Imaging Camera
- Your Choice of Lens or Lenses
- Battery (2 ea)
- Battery Charger
- Power Supply for Battery Charger
- Printed Documentation
- 8 GB SD Card
- USB 2.0 A to USB Type-C cable, 1.0 m
- USB Type-C to HDMI adapter, standard specification UH311
- USB Type-C to USB Type-C cable (USB 2.0 standard), 1.0 m
- Front Protection
- Front Protection Fastener
- Hand Strap
- 2x Hand Strap Brackets (Left and Right)
- Wrist Strap
- Lanyard Strap (Camera)
- Front and Rear Lens Caps
- Lens Cap Strap
- Screws
- Torx T10 Wrench
- Carabiner Hook
- FLIR Thermal Studio Pro Software (3 Month Subscription)
- FLIR Route Plugin for the FLIR Thermal Studio Pro Software (3 Month Subscription)
- Hard Transport Case
Application Case Study, using the FLIR E96
 |
Read DryFIX Preservation Ltd’s application case study „Water coming in or simply trying to get out?…… How advancements in technology have eased the process of diagnosis.”
The article on Linkedin features the FLIR E96 Thermal Imaging Camera, and how using it in a property survey, helped to speed up diagnosis! |
Specifications
- IR Resolution
- 640 × 480 pixels
- Thermal Sensitivity/NETD
- <40 mK, 24° at 30°C (86°F)
<50 mK, 14° at 30°C (86°F)
- Accuracy
- ±2°C (±3.6°F) or ±2% of the reading
- Field of view (FOV)
- 24° × 18°, 14° × 10°
- Digital Camera
- 5 MP, with built-in LED photo/video lamp
- Display
- 4″, 640 × 480 pixel touchscreen LCD with auto-rotation
- Storage Media
- Removable SD card
Imaging & Optical
- Color Palettes
- Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
- Detector Type and Pitch
- Uncooled microbolometer, 12 µm
- Digital Camera
- 5 MP, with built-in LED photo/video lamp
- Digital Zoom
- 1-8× continuous
- Field of view (FOV)
- 24° × 18°, 14° × 10°
- f-number
- 24°: 1.3
14°: 1.3
- Focal Length
- 24°: 17 mm (0.67 in)
14°: 29 mm (1.41 in)
- Focus
- Continuous LDM, One-shot LDM, One-shot contrast, Manual
- Image Frequency
- 30 Hz
- IR Resolution
- 640 × 480 pixels
- Lens Identification
- Automatic
- Minimum Focus Distance
- 24°: 0.18 m (0.59 ft), 14°: 1.0 m (3.28 ft)
- Minimum Focus Distance with MSX
- 24°: 0.5 m (1.64 ft)
14°: 1.0 m (3.28 ft)
- Non-radiometric IR video streaming
- H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
- Picture-in-Picture
- Resizable and movable
- Radiometric IR video recording
- Real-time radiometric recording (.csq)
- Radiometric IR video streaming
- Yes, over UVC
- Spatial resolution (IFOV)
- 24°: 0.67 mrad/pixel
14°: 0.38 mrad/pixel
- Spectral Range
- 7.5-14 µm
- Thermal Sensitivity/NETD
- <40 mK, 24° at 30°C (86°F)
<50 mK, 14° at 30°C (86°F)
- UltraMax
- Yes
- Viewfinder
- No
Measurement & Analysis
- Accuracy
- ±2°C (±3.6°F) or ±2% of the reading
- Measurement Presets
- No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
- Object Temperature Range
- -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F); 300 to 1500°C (572 to 2732°F)
- Spot Meter
- 3 ea. in live mode
User Interface
- Display
- 4″, 640 × 480 pixel touchscreen LCD with auto-rotation
- Text
- Predefined list or touchscreen keyboard
- Voice
- 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth®
Power
- Battery operating time
- >2.5 hours at 25°C (68°F) and typical use
- Battery type
- Rechargeable Li-ion battery
Environmental & Certifications
- Operating Temperature Range
- -15 to 50°C (5 to 122°F)
- Safety
- EN/UL/CSA/PSE 60950-1
- Storage Temperature Range
- -40 to 70°C (-40 to 158°F)
General
- FLIR Inspection Route
- Enabled in camera
- Form Factor
- Pistol
- Laser Pointer
- Yes
- Packaging
- Infrared camera with lens, s2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Starter
