Opis

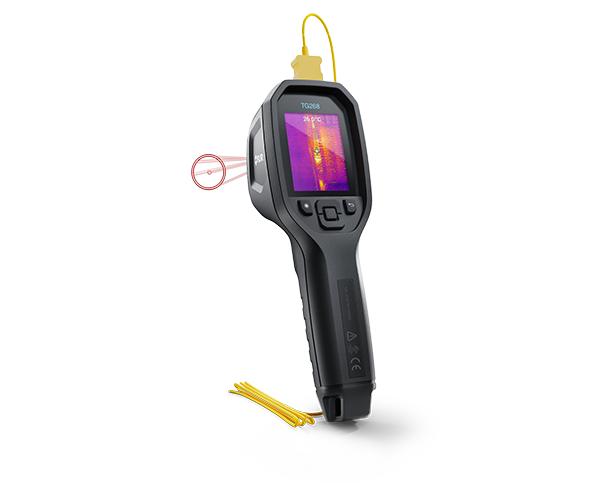

The FLIR TG268 takes you beyond the limitations of single-spot IR thermometers to both see and evaluate the hot and cold spots that can indicate serious issues. Ideal for commercial electrical, facility maintenance, automotive and HVAC applications, this advanced thermal camera with a brilliant 2.4 inch screen reduces diagnostic time while simplifying repair and maintenance reporting. Patented FLIR MSX® (Multi-Spectral Dynamic Imaging) enhancement improves image clarity by embossing visual scene details on full thermal images, and super resolution allows you to upscale images from 160 ×120 to 320 × 240 for superior detail to help you accurately target potential faults and troubleshoot repairs. Then with the FLIR METERLiNK® app, you can quickly and efficiently capture and compare readings, analyze and share images and videos, and create reports and easily share them with your team.
- Identify Problems QuicklyAccurately measure temperatures up to 400°C (752°F) with a 24:1 spot size ratio and bullseye laser pointer
- High-quality images and performanceDiagnose problems quickly with FLIR-patented MSX image enhancement and Improve the details of native thermal images with super resolution, which allows you to upscale images to 320 × 240 (76,800 pixels) resolution
- Work with Confidence in Rugged EnvironmentsThe IP54 rated FLIR TG268 comes complete with a built-in LED worklight for better visibility in dark or poorly lit areas, a Type K thermocouple, and a 2 m drop test rating for durability.
get inspection information to the people you need
FLIR METERLiNK® App
The FLIR METERLiNK® app allows you to monitor a variety of environmental and electrical conditions simultaneously with the ability to connect with up to seven FLIR compatible meters at once. METERLiNK allows you to safely capture images and monitor hazardous areas remotely and in real time. Whether you’re connecting several FLIR clamp meters, digital multimeters, or any of the new METERLiNK app compatible meters, you will be able to keep tabs on key readings around your facility and easily share them with your team.
UNRIVALED IMAGE QUALITY
MSX® Image Enhancement
The FLIR TG268 and FLIR TG298 feature FLIR’s unique Multi Spectral Dynamic Imaging (MSX), which adds key details from the onboard visible light camera to the entire infrared image in real time. The result: an all-in-one, undiluted thermal picture with visible light features that lets you instantly recognize where the problematic heat pattern is. MSX is real time so you can see its results immediately on the camera’s display.
Pictured left to right: without MSX® and with MSX®
Super Resolution
FLIR TG-Series infrared cameras utilize Super Resolution technology to enhance image quality. Through Super Resolution, the native resolution of 160 × 120 effectively upscales the image to 320 × 240, delivering greater detail and improved sharpness. Super Resolution ensures clearer thermal images for more precise diagnostics. This advanced imaging capability helps users quickly identify issues, improve decision-making, and conduct more reliable thermal inspections.
Standard IR Resolution FLIR Super Resolution
Specifications
- IR Resolution
- 160 × 120
Super Resolution 320 × 240
- Thermal Sensitivity/NETD
- <70 mK
- Accuracy
- ±2.5% or 2.5°C (6°F) at 0°C to 50°C (33°F to 122°F) and 100°C to 400°C (213°F to 752°F)
±3% or 3°C (7°F) at −25°C to 0°C (−13°F to 32°F
- Field of view (FOV)
- 57° × 44°
- Image Modes
- MSX® (Multi Spectral Dynamic Imaging)
Visual with temperature reading
- Display
- 320 × 240, 2.4 in color LCD
- Storage Media
- 8 GB
Imaging & Optical
- Built-in Digital Camera
- Yes
- Color Palettes
- Iron, Rainbow, White hot, Black hot, Arctic, Lava
- Detector Pitch
- 12 µm
- Detector Type
- Focal plane array (FPA), uncooled microbolometer
- Digital image enhancement
- Yes
- Field of view (FOV)
- 57° × 44°
- Focus
- Focus free
- Image Frequency
- 8.7 Hz
- Image Modes
- MSX® (Multi Spectral Dynamic Imaging)
Visual with temperature reading
- IR Resolution
- 160 × 120
Super Resolution 320 × 240
- Laser
- Class 1 laser indicates the temperature measurement area; button-activated
- Minimum Focus Distance
- 0.3 m (0.98 ft)
- Minimum Measurement Distance
- 0.26 m (0.85 ft)
- Non-radiometric IR video recording
- Yes
- Spectral Range
- 7.5 – 14 µm
- Thermal Sensitivity/NETD
- <70 mK
Measurement & Analysis
- Accuracy
- ±2.5% or 2.5°C (6°F) at 0°C to 50°C (33°F to 122°F) and 100°C to 400°C (213°F to 752°F)
±3% or 3°C (7°F) at −25°C to 0°C (−13°F to 32°F
- Camera size (L x W x H)
- 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in)
- Camera weight incl battery
- 0.394 kg (13.9 oz)
- Center spot
- Yes
- Measurement Option
- Non-contact surface / contact with Type-K
- Object Temperature Range
- −25°C to 400°C (−13°F to 752°F)
User Interface
- Display
- 320 × 240, 2.4 in color LCD
Power
- Battery operating time
- 5 hours continuous scanning, 4.5 hours with laser on
- Battery type
- Rechargeable Li ion battery
- Battery voltage
- 3.7 V
- Charging system
- Battery is charged inside the camera
- Charging Temperature
- 0°C to 45°C (32°F to 113°F)
- Charging Time
- 3 hours to 90%, 4 hours to 100%
Environmental & Certifications
- Certifications
- CE, CB, RCM, IEC60825-1, FDA, UL, CEC, NRCan
- Drop test
- Designed for 2 m (6.6 ft)
- EMC
- EN 61000-6-3
EN 61000-6-2
FCC 47 CFR Part 15 Class B
- Encapsulation
- IP 54 (IEC60529)
- Humidity (Operating and Storage)
- 0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F))
- Operating Temperature Range
- -10°C to 45°C (14°F to 113°F)
- Radio Spectrum
- ETSI EN 300 328
FCC Part 15.249
RSS-247 Issue 2
EN 301 489-1:2011
EN 301 489-17:2009
- Safety
- CE/CB/EN61010/UL
- Shock
- 25 g (IEC 60068-2-27)
- Storage Temperature Range
- −30°C to 55°C (−22°F to 131°F)
- Tripod Mounting
- 1/4 in.-20 on handle bottom
- Vibration
- 2 g (IEC 60068-2-6)
- Warranty
- FLIR 2-10 warranty
General
- Form Factor
- Pistol
- Package Includes
- TG268
Wrist Strap Lanyard
Pouch
USB Type-C cable
Type-K Thermocouple
Printed Documentation
