Opis

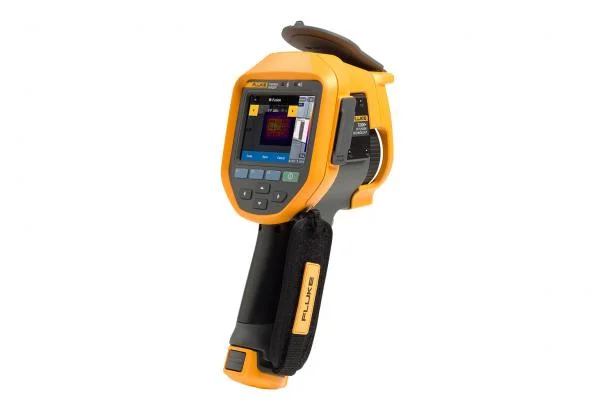

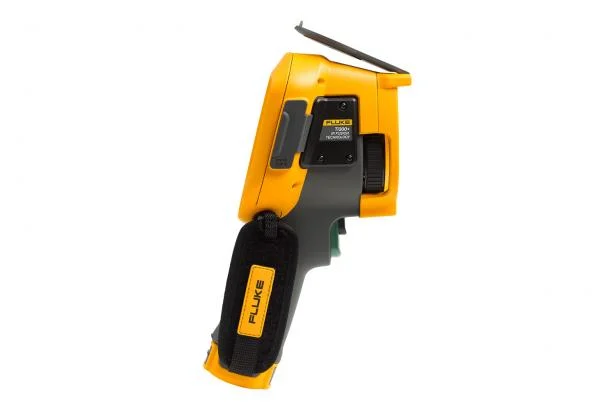

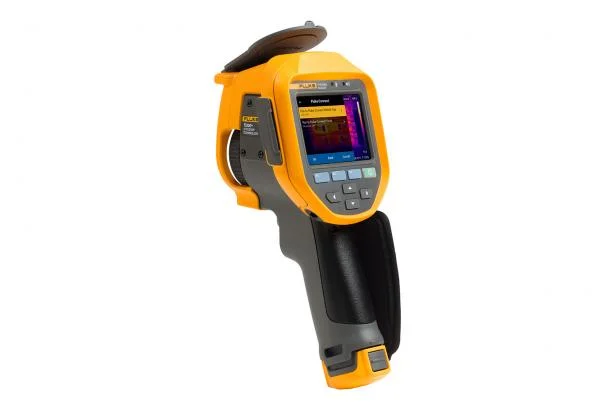

Fluke Ti300+ Thermal Camera
Key features
- 320 x 240 resolution
- 2 meter drop test
- LaserSharp™ Auto Focus
- Manual or automatic focus
- Measure up to 650 °C
- Subject to Export Control
Product overview: Fluke Ti300+ Thermal Camera
Leading an industrial maintenance team requires a unique combination of communication skills, industry knowledge and technical expertise. Implementing standard work and a preventive maintenance program is more than just good for business – it also aligns your team with a common goal of safely and efficiently keeping the plant up and running. Choosing the right tools can make a significant difference in the success of these types of programs.
The Fluke Ti300+ helps teams find issues before they are fully formed problems. It has the resolution and accuracy needed to clearly reveal temperature differentials or demonstrate progressive heat changes over time. With LaserSharp™ AutoFocus the Ti300+ ensures focused images – every single time. With the touch of a button, use the built-in laser distance meter to calculate and display the distance to your designated target on the camera screen and snap the image in focus. Most importantly, temperature readings from in focus images will be highly accurate. Enable your team to get clear images while maintaining a safer distance from operating equipment.
For thermal images to illustrate an issue, you need to know your equipment and understand the subtle difference between normal and abnormal operating temperatures. You also need confidence in your ability to capture accurate thermal images and having a Fluke Ti300+ thermal camera with LaserSharp AutoFocus makes taking everything much easier. Finally, you need a thermal camera that is rugged enough to capture quality infrared images even if it gets dropped (up to two meters).
Fluke Ti300+ Thermal Imaging Camera
The Fluke Ti300+ Thermal Imaging Camera is an infrared imager suitable for a range of troubleshooting, preventive and predictive maintenance applications. To this end, it features a thermal resolution of 320 x 240px (76 800 pixels) and a temperature range of up to 650°C. The Fluke Ti300+ Thermal Imaging Camera has the resolution and the accuracy required to capture clear temperature differentials, as well as illustrate progressive heat changes over time.
In addition to an infrared resolution of 320 x 240px, the Fluke Ti300+ Thermal Imaging Camera has a 34°H x 24°V field of view as well as a range of functions designed to improve focus and precision.
IR-Fusion™ Technology
Visible details are overlaid onto the thermal image improving picture clarity and allowing the user to pinpoint defective components more effectively and easily.
LaserSharp™ Auto Focus
This function can be used to capture focused images automatically, ensuring the user is provided with the most accurate temperature readings at the safest distance from the target.
Laser Distance Meter
Similarly, at the touch of a button, the Laser Distance Meter can be used to calculate the distance to the target required for precisely focused images. This distance will be displayed on the 3.5” (landscape), 640 x 480 LCD screen, again allowing the user to capture accurately focused images from the safest distance.
Manual Focus
The user is also able to focus the Fluke Ti300+ Thermal Imaging Camera manually. It has a minimum focus distance of 15cm/ 6 inches.
As the Fluke Ti300+ Thermal Imaging Camera is Fluke Connect enabled, it is possible to upload images from the IR imager to the user’s smartphone or tablet via Wi-Fi and the Fluke Connect App. Alternatively, these images can be uploaded to the Fluke Connect Cloud, again via Wi-Fi.
Furthermore, using the Fluke Connect Desktop Software (NOT included), the operator is able to access his/her IR images stored on the Fluke Connect Cloud or App and may edit and optimise these images as well as combine visual and IR images for easier analysis. Edited and analysed pictures can be included in professional reports and/or attached to assets. The Fluke Connect Desktop Software can be used to search for and organise images according to asset, severity and title.
Finally, this durable and ergonomic thermal camera with a simple, touchscreen operating system has been drop-tested from 2m making it suitable for use in rugged environments.
The Fluke Ti300+ Thermal Imaging Camera is a simple-to-use, precise and ergonomic infrared imager that can be used to reduce system downtime and prevent unexpected breakdowns by identifying faults before they become significant problems.
Key Features
- Suitable for a range of troubleshooting, preventive and predictive maintenance applications
- Thermal resolution: 320 x 240px (76 800 pixels)
- Measure temperatures from -20 to 650°C
- Thermal sensitivity: 75mk
- Capture clear temperature differentials
- Illustrate progressive heat changes over time
- Available with a 9Hz or 60Hz frame rate
- FOV: 34°H x 24°V
- IR-Fusion™ Technology
- LaserSharp™ Auto Focus
- Laser Distance Meter
- Automatic and Manual focus
- Minimum focus distance: 15cm/ 6 inches
- Capture precisely focused images with accurate temperature readings from a safe distance
- Fluke Connect enabled
- Upload images from the IR imager to the user’s smartphone or tablet via Wi-Fi and the Fluke Connect App
- Upload images to the Fluke Connect Cloud via Wi-Fi
- The Fluke Connect Desktop Software can be used to access IR images stored on the Fluke Connect Cloud or App
- Edit and optimise images using the Fluke Connect Desktop Software
- Combine visual and IR images for easier analysis using the Fluke Connect Desktop Software
- Create professional reports using the Fluke Connect Desktop Software
- Use the Fluke Connect Desktop Software to organise and search for images according to asset, title or severity
- Durable and ergonomic
- Touchscreen operation (3.5″ touchscreen display)
- Drop-tested from 2m
- Battery life: 3 hours
- Simple-to-use, precise and ergonomic infrared imager
- Reduce system downtime and prevent unexpected breakdowns by identifying faults before they become significant problems
What Accessories Come with the Fluke Ti300+?
- AC Power Supply and Battery Pack Charger (including universal AC adapters)
- 2x Rugged Lithium-ion Battery Packs
- USB Cable
- HDMI Video Cable
- 4GB MicroSD Card
- Adjustable Hand Strap
- Fluke Connect Desktop Software and User Manual
- Rugged (IP67) Hard Carrying Case
Fluke Ti-Series Thermal Camera Comparison
| Model | Ti300+ | Ti401 PRO | Ti480 PRO | |
|---|---|---|---|---|
| Field of View | 34 °H x 24 °V | |||
| IFOV | 1.85 mRad, D:S 532:1 | 0.93 mRad, D:S 1065:1 | ||
| Infrared Resolution | 320 x 240 (76,800 pixels) | 640 x 480 (307,200 pixels) | ||
| Touchscreen Display | 3.5 inch (landscape), 640 x 480 LCD | |||
| Super Resolution | – | – | Yes | |
| MultiSharp Focus | – | – | Yes | |
| LaserSharp Auto Focus | Yes | Yes | Yes | |
| IR-Fusion | Yes | Yes | Yes | |
| Auto Capture | – | – | Yes | |
| Thermal Sensitivity (NETD) | = 0.075 °C at 30 °C target temp (75 mK) | = 0.075 °C at 30 °C target temp (75 mK) | = 0.05 °C at 30 °C target temp (50 mK) | |
| Digital Zoom | – | – | 2x and 4x | |
| IR-Image Notes | 2 images | 2 images | 5 images | |
| Video Recording | – | – | Standard and radiometric | |
| Remote Control | – | Remote display via Fluke Connect | Remote display and control via Fluke Connect | |
