Get the right blend of infrared, battery life, and analysis

Whether you are up on the roof doing an HVAC inspection, deep in the plant inspecting a motor, or if you have locked out an electrical panel you rely on your tools to have the power and features to do your job done fast, without extra trips back to the truck or the shop. The Fluke TiS20+ thermal camera puts the power of thermal imaging at your fingertips. Designed to make your job quicker and easier this thermal imager is the right tool for:

• Commercial electricians
• HVAC/R technicians
• Maintenance technicians

Get context with a combined visual light and infrared image

In thermography, context matters. Let Fluke IR-Fusion™ make your job easier by using a thermal image overlaid on a visual light image to give you the full picture of where the issue is before it becomes a problem. Simply slide your finger across the screen to adjust the level of infrared. Whether you are finding an uneven load on a switchgear or inspecting a ventilation system, the Fluke TiS20+ helps you detect issues quickly.

Longest battery life in a Fluke thermal camera ever

The TiS20+ can work two full shifts without a break, with a battery life of over 16 hours. No need to carry any extra batteries or have a charger with you on your route, or when inspecting systems. You know you can always count on this IR camera to deliver results.

You work hard all day, so should your tools

You cannot afford to have your thermal imager fail due to your environment. You can sleep easy at night knowing that your camera will hold up to whatever the day throws at you.

• 2 meter drop tested
• Water resistant (IP54)
• Dust resistant (IP54)

Stop sorting, start analyzing with Fluke Connect Asset Tagging

Eliminate hours at the computer organizing your thermal images, let Asset Tagging do all that work for you No more dragging and dropping or renaming files in the office, just scan a QR code on your asset, capture your thermal images and they automatically are sorted by asset. Start spending your time analyzing your images and creating reports instead of sorting your files one at a time.

Get the most out of your TiS20+ with Fluke Connect™ desktop software. Create professional reports in minutes while efficiently capturing full radiometric data to support your maintenance program.

• Edit and optimize images
• Combine infrared and visible images for simpler analysis
• Create detailed reports
• Access thermal images from cloud storage

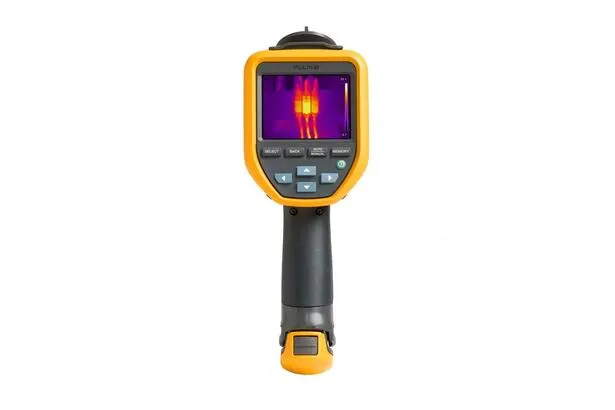

• Organize and search images by asset, severity, and titleThe Fluke TiS20+ Series Thermal Imagers are infrared cameras designed to detect electrical and mechanical issues. They are perfect for commercial electricians, as well as technicians working in heating, ventilation, air conditioning, refrigeration, and maintenance.

  These cameras boast an infrared resolution of 120 x 90 pixels (10,800 pixels) and incorporate IR-Fusion technology, which superimposes visible images onto thermal ones to highlight details. This feature enhances the efficiency and simplicity of fault detection. Users can adjust the blending level between infrared and visible images by sliding a finger across the screen. Both thermal and blended images are displayed on a 3.5-inch LCD touchscreen.

  With Fluke Connect compatibility, images captured by the camera can be asset tagged, eliminating the need for manual sorting. By simply scanning an asset’s QR code, thermal images are automatically organized according to the asset.

  There are two camera options available, each with distinct temperature measurement ranges. The Fluke TiS20+ covers a range from -20°C to 150°C (-4°F to 302°F), while the Fluke TiS20+ Max spans from -20°C to 400°C (-4°F to 752°F).

  Additional practical features include the longest battery life among Fluke thermal cameras, offering up to five hours of continuous operation. The sleep mode helps conserve battery life when the camera is not in use and allows for quick reactivation by pressing the power button.

  Lastly, the Fluke TiS20+ Series Thermal Imager features a durable design that is resistant to water and dust, making it suitable for various environments. The cameras have an IP54 rating and have been tested to withstand drops from 2 meters.

  The Fluke TiS20+ Thermal Imaging Camera is a user-friendly, ergonomic, and efficient tool for infrared imaging troubleshooting.

  Models

  • TiS20+: -20 °C to 150 °C (-4°F to 302°F)
  • TiS20+ Max: -20 °C to 400°C (-4°F to 752 °F)

  Videos



  Fluke TiS20+ Thermal Imaging Camera Overview



  Key Features

  • Temperature measurement range (not calibrated below 0 °C)
    • TiS20+: -20 °C to 150 °C (-4°F to 302°F)
    • TiS20+ Max: -20 °C to 400°C (-4°F to 752 °F)
  • Infrared imaging camera for identifying electrical and mechanical faults
  • Ideal for commercial electricians
  • Ideal for heating, ventilation, air conditioning and refrigeration technicians
  • Ideal for maintenance technicians
  • IR resolution: 120 x 90px (10800 pixels)
  • IR-Fusion™ technology: blends visible images and thermal images to varying degrees
  • The degree of blending can be controlled by sliding a finger across the display
  • IR-Fusion™ technology enhances image details
  • 3.5” LCD touchscreen display
  • Fluke Connect compatible
  • Asset tag thermal images: automatically organises images according to asset
  • Scan the asset’s QR code to enable asset tagging
  • The longest battery life of any Fluke thermal imaging camera
  • Maximum operating time: 5 hours
  • Sleep mode: conserves battery power when the camera is not in use
  • Press the power button to quickly restart the imager
  • Rugged: drop-tested from 2m
  • IP54: dust- and water-resistant
  • An easy-to-use, ergonomic and effective infrared-imaging troubleshooting tool

  What’s Included?

  • Thermal Imaging Camera (TiS20+ or TiS20+ Max)
  • AC Power Supply (including universal AC adapters)
  • Lithium-ion Smart Battery
  • USB Cable
  • Soft Transport Bag
